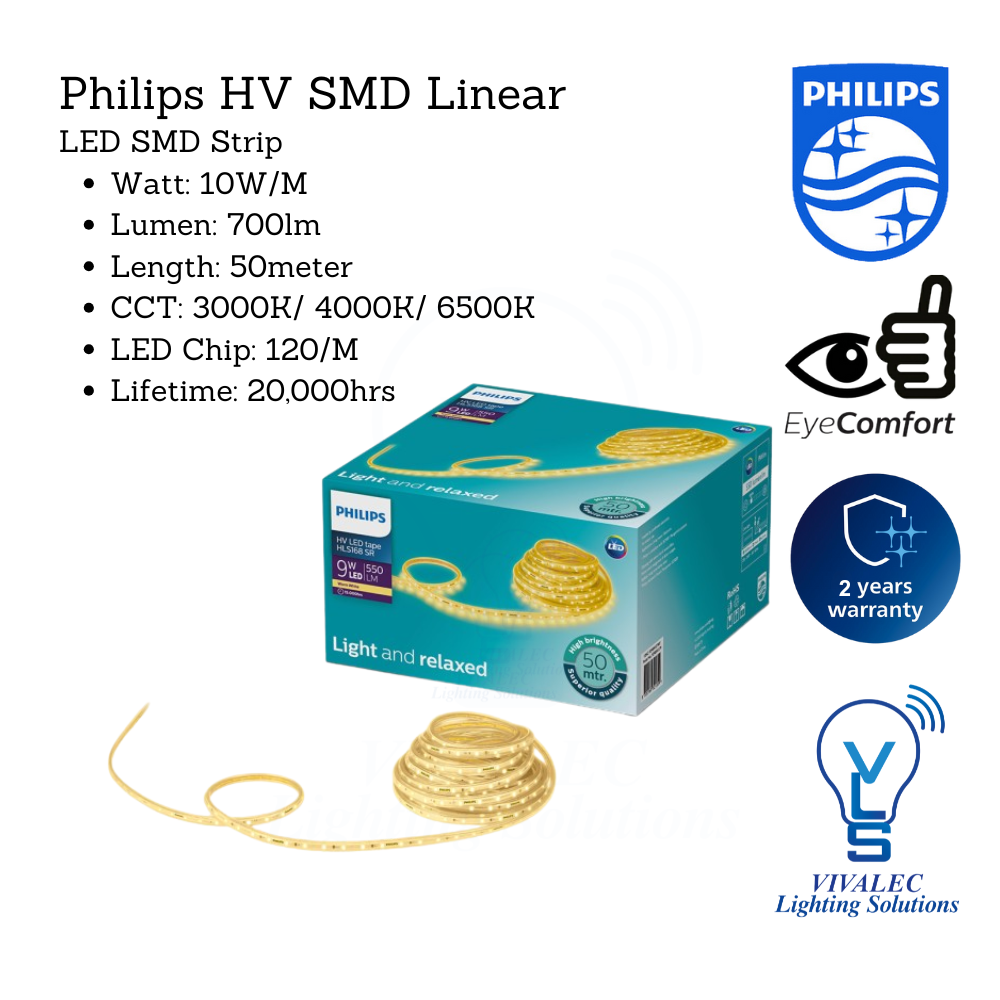

he Philips HV SMD Linear LED Strip (HLS168 Dot) is a robust, high-voltage lighting solution designed for long-distance linear lighting applications. Operating directly on high voltage, this 50-meter reel simplifies installation by requiring fewer power supplies, making it highly efficient for extended architectural accents, cove lighting, or perimeter illumination.
This strip uses Surface-Mounted Device (SMD) technology, featuring 120 LED chips per meter to deliver a bright 700 lumens of output at 10W/m. It offers a wide 120∘ beam angle for excellent coverage.
The HLS168 is available in three single Color Correlated Temperature (CCT) options: a warm and welcoming 3000K Warm White (830); a neutral and clear 4000K Cool White (840); or a crisp and bright 6500K Cool Daylight (865). With a 20,000 hour lifespan, this strip provides reliable, long-term performance.
Key Features:
-
SMD Technology (Dot): Standard SMD chip placement, ideal for indirect lighting or when the light source is hidden.
-
High Voltage (HV): Suitable for long, continuous runs up to 50 meters from a single power point (consult accessory requirements).
-
High Output: 700lm per meter at 10W/m.
-
High Density: 120 chips per meter for consistent lighting.
-
CCT Options: Available in 3000K, 4000K, and 6500K single colors.
-
Lifetime: Extended 20,000 hour lifespan.
Product Specifications & Variants (HLS168 50M):
| Wattage | Lumen Output | Length | CCT | SKU |
| 10W/m | 700lm/m | 50m | 3000K (830) | 929004652207 |
| 10W/m | 700lm/m | 50m | 4000K (840) | 929004652307 |
| 10W/m | 700lm/m | 50m | 6500K (865) | 929004652407 |
General Technical Specifications:
| Attribute | Specification |
| LED Chip Density | 120 per meter |
| Beam Angle | 120∘ |
| CCT Options | 3000K/4000K/6500K |
| Lifetime | 20,000 hours |
| Technology | SMD (Dot) |
Additional information
| Weight | 0.00 kg |
|---|---|
| Dimensions | 0.00 × 0.00 × 0.00 cm |
| ColorTemp | 3000K, 4000K, 6500K |
