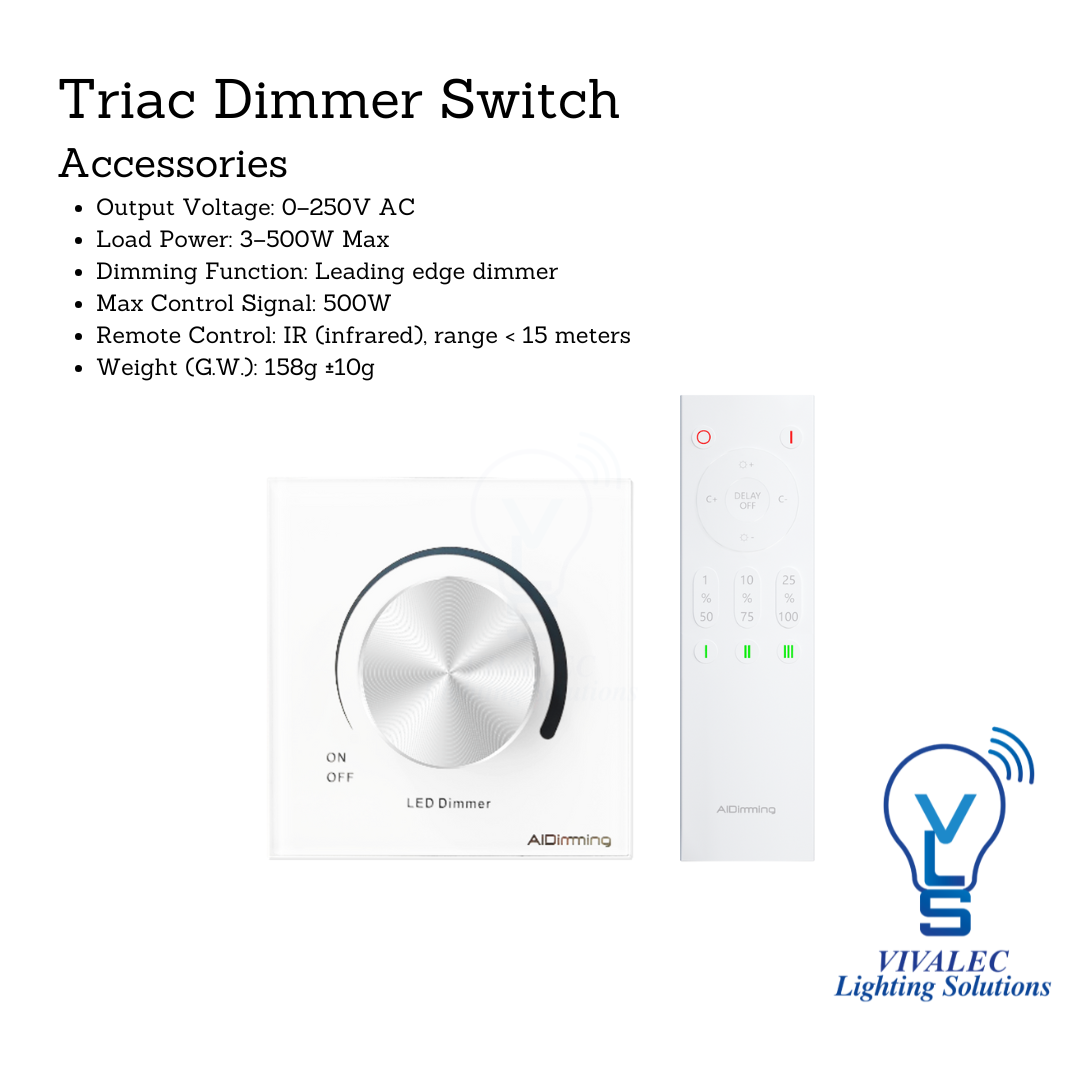

AiDiming PE386 500W Dimmer Switch – Leading Edge Glass Panel Dimmer with Metal Knob & IR Remote

Product Description

The AiDiming PE386 is a high-power 500W leading edge dimmer switch built for seamless brightness control in intelligent lighting environments. Featuring a stylish glass panel and a durable metal rotary knob, the PE386 combines modern design with powerful functionality. It offers front-cut dimming for smooth transitions, enhanced with infrared remote control support and three customizable lighting scenes.

This dimmer is designed with advanced dimming compatibility and comes equipped with a unique slow-on/slow-off feature to improve visual comfort. Whether used in homes, hotels, or smart lighting systems, the PE386 delivers reliable and elegant performance with up to 5 years of manufacturer warranty.

Key Features

• Leading Edge (Front-Cut) Dimming – Ensures smooth and fine lighting transitions

• Metal Knob Control – Provides tactile and precise dimming adjustment

• Infrared Remote Support – Switch lighting on/off and access 3 custom scenes remotely (≤15m range)

• Minimum Brightness Setting – Allows precise control of low-light levels

• Super Compatibility – Supports various dimming power supplies (constant current & voltage)

• Slow-On & Off Function – Enhances user comfort with soft fade transitions

• Glass Panel Design – Durable and elegant faceplate

• Full Range Dimming – 0% to 100% adjustable

• 5-Year Warranty – Built to last for long-term applications

Technical Specifications

• Model: PE386

• Output Voltage: 0–250V AC

• Max Load Power: 3–500W

• Dimming Function: Leading edge dimmer (thyristor type)

• Input Voltage: 200–250V AC

• Frequency: 50/60Hz

• Input Power: <2W

• Control Mode: Knob dimming with integrated on/off

• Remote Control: Infrared (range ≤15 meters)

• Working Temperature: ta: 45°C, tc: 85°C

• Humidity Range: 20–95% RH (non-condensing)

• Storage Conditions: -40°C to 80°C, 10–95% RH

• Waterproof Rating: IP20

• Protections:

  • Overload: Use within specified limits

  • Short Circuit: Cannot be shorted – not repairable

  • Non-Load: No output if no load detected

• Product Dimensions: 86 × 86 × 33.2 mm

• Packing Size: 100 × 92 × 62 mm

• Weight (G.W.): 158g ±10g

Applications

• Leading edge or trailing edge dimming driver control

• Home smart lighting environments

• Hotel intelligent lighting systems
