AiDiming PE-X5 Smart DALI Lighting Control Panel – 5.0” Touchscreen with RGBW/CCT, TUYA & Voice Integration

Product Description

The AiDiming PE-X5 is an advanced smart lighting control panel engineered to provide seamless and stable DALI digital lighting management. With a sleek 5.0-inch HD capacitive touchscreen and aviation-grade metal construction, the PE-X5 combines elegance with powerful functionality.

It supports RGB, RGBW, and RGBCW lighting with adjustable color temperature, scene customization, intelligent linkage, and both voice and mobile app control. Designed for high-end homes and commercial environments, it supports intranet and ZigBee wireless communication, making smart lighting setup simple and flexible.

Key Features

• 5.0-inch Color IPS Display
  480×854 resolution with HD capacitive touchscreen for intuitive control

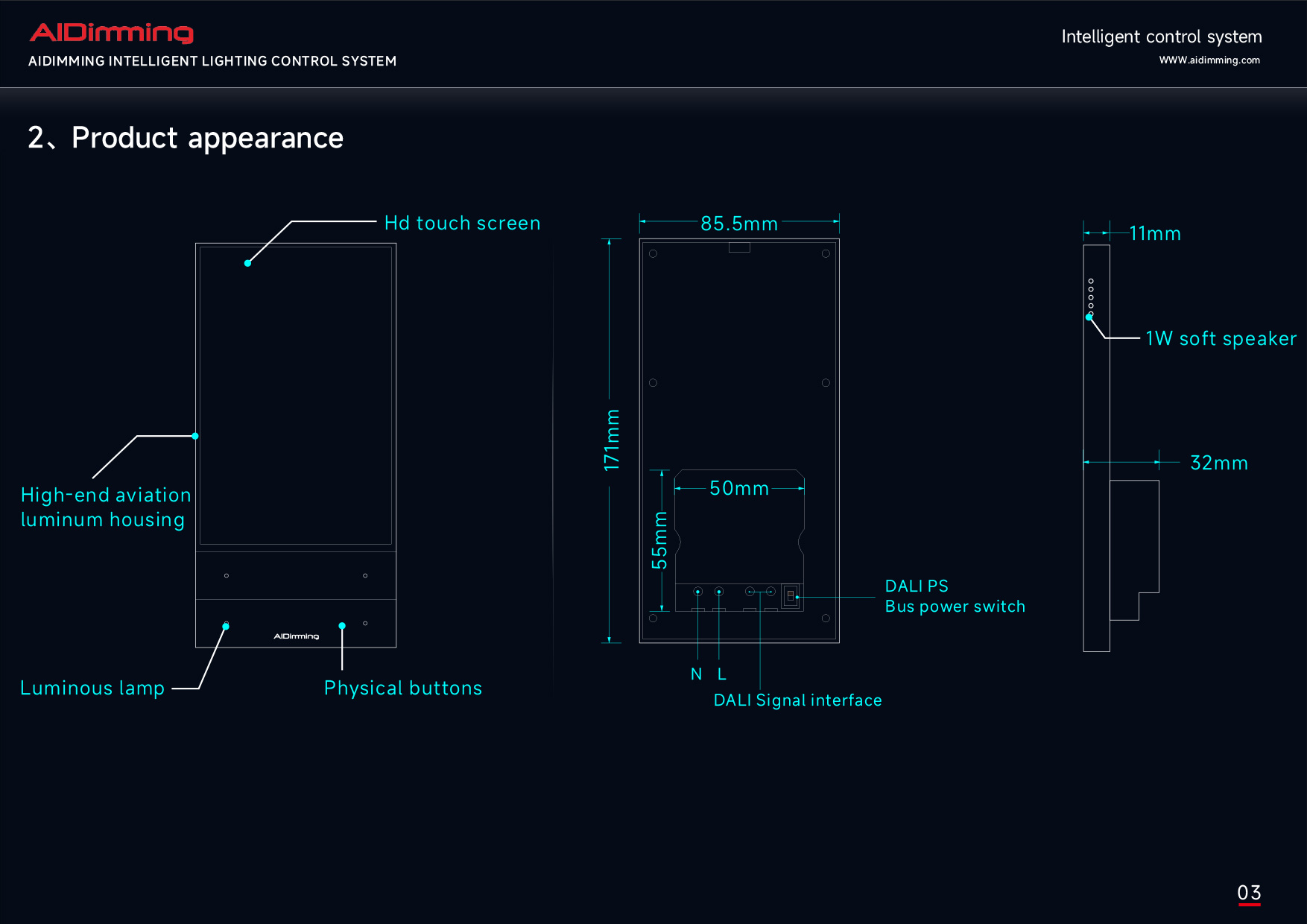

• Premium Build
  Modern design with a metal frame, tempered glass cover, and aviation-grade metal buttons

• Lighting Control Functions

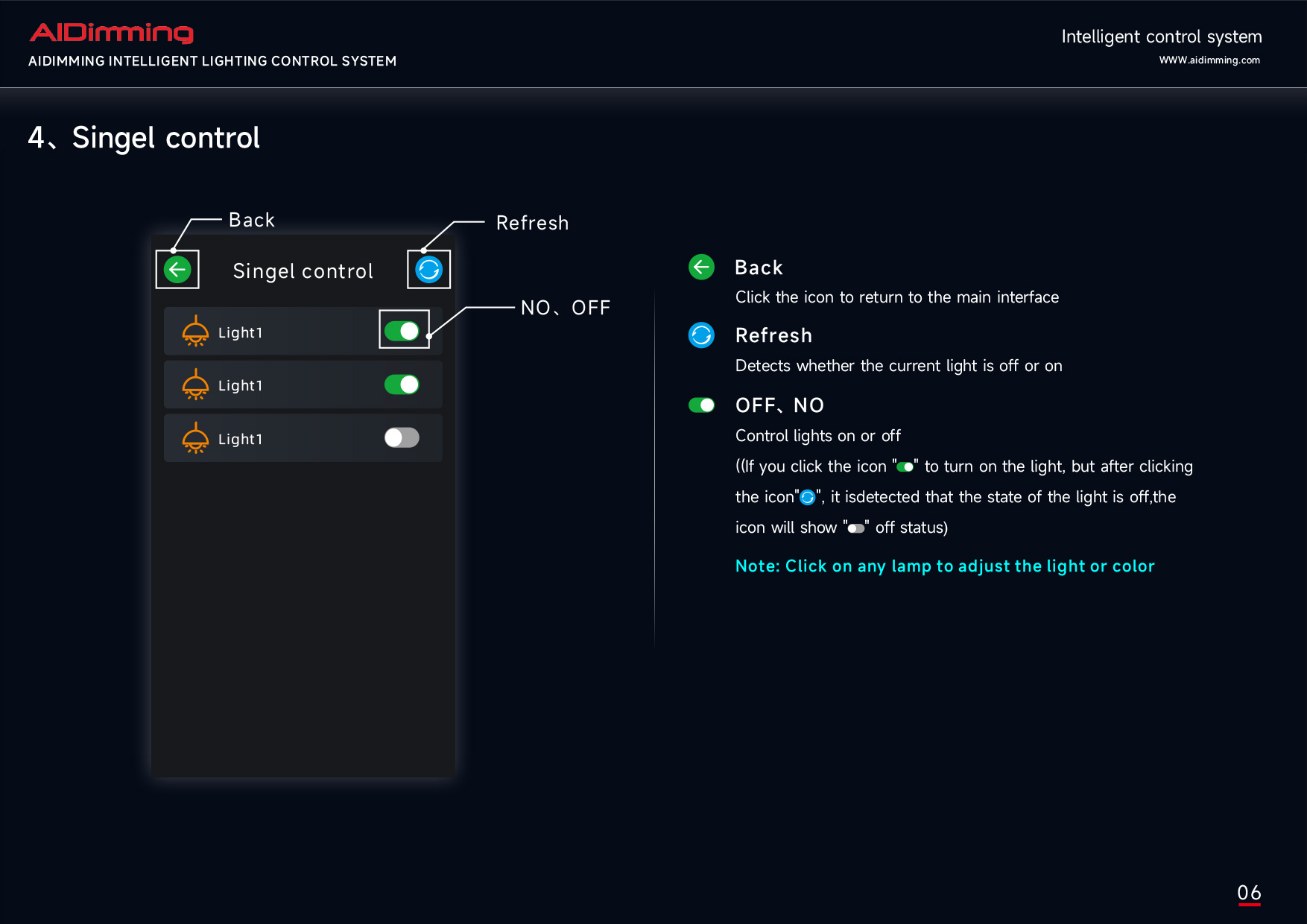

  Includes on/off switch, dimming, and customizable scene control

• Color Compatibility
  Supports RGB, RGBW, and RGBCW with color temperature adjustment

• Smart Features

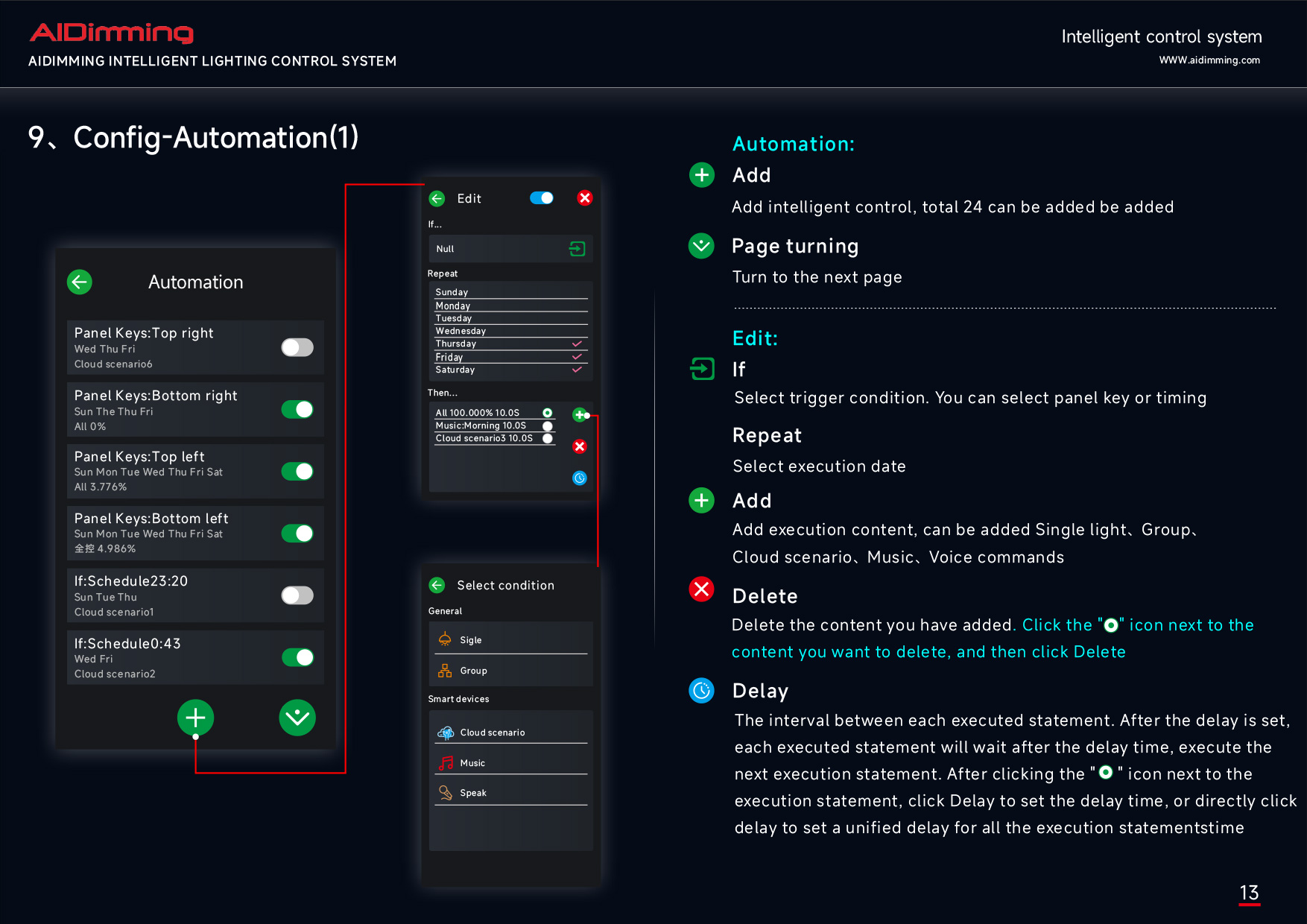

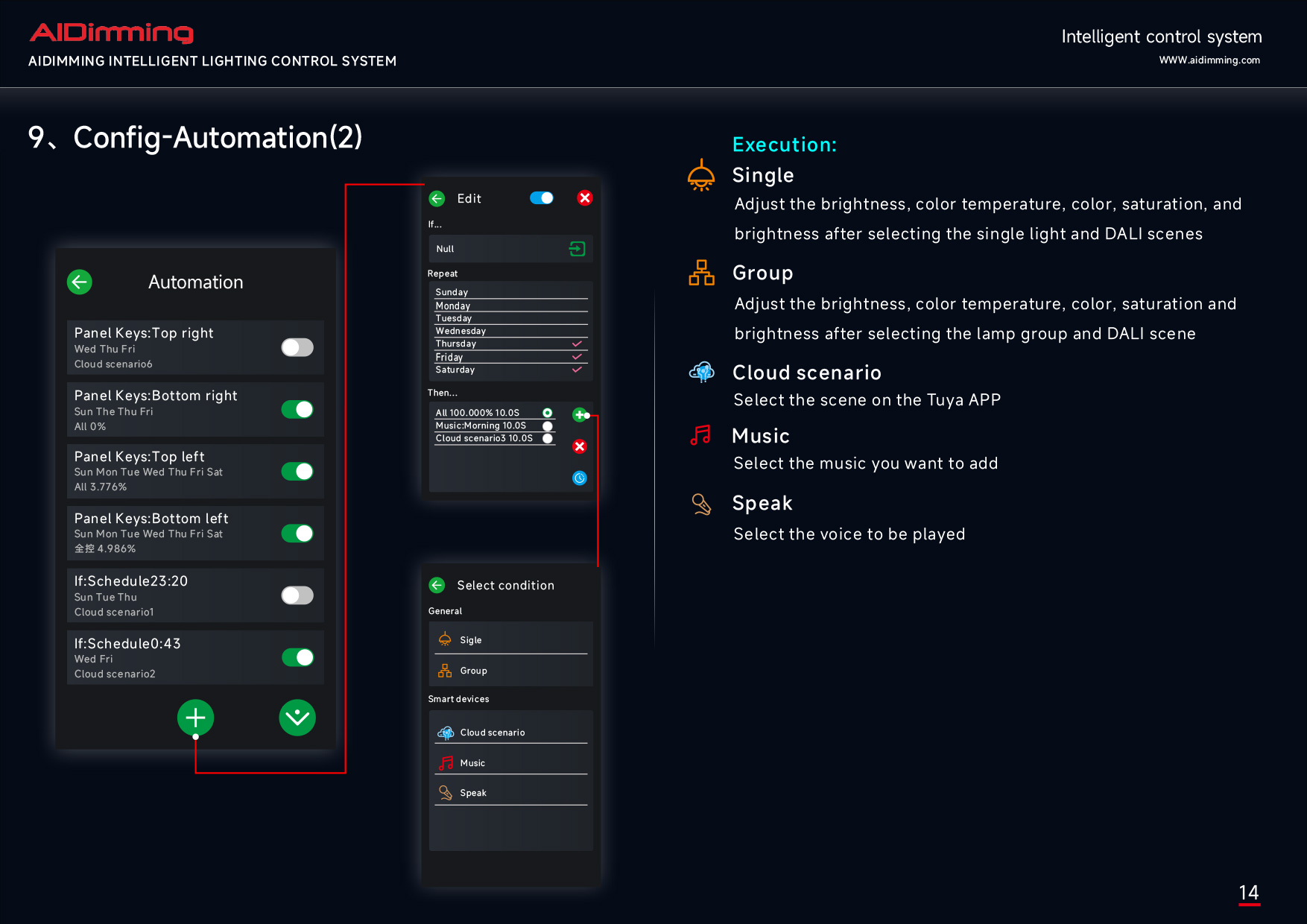

  • Intelligent linkage between devices

  • Rhythm lighting to simulate natural light patterns

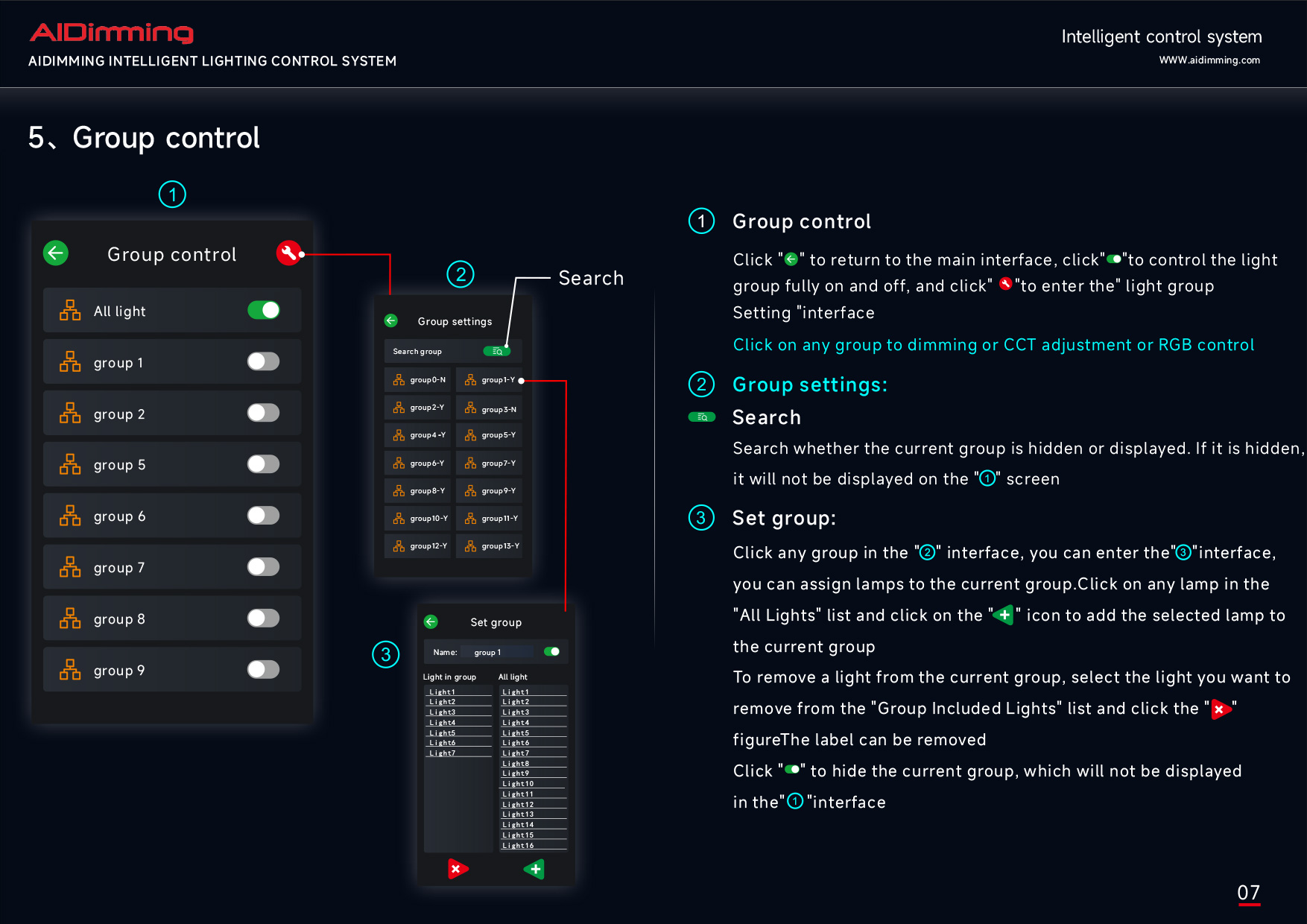

  • Scenario group customization

• Voice & App Control

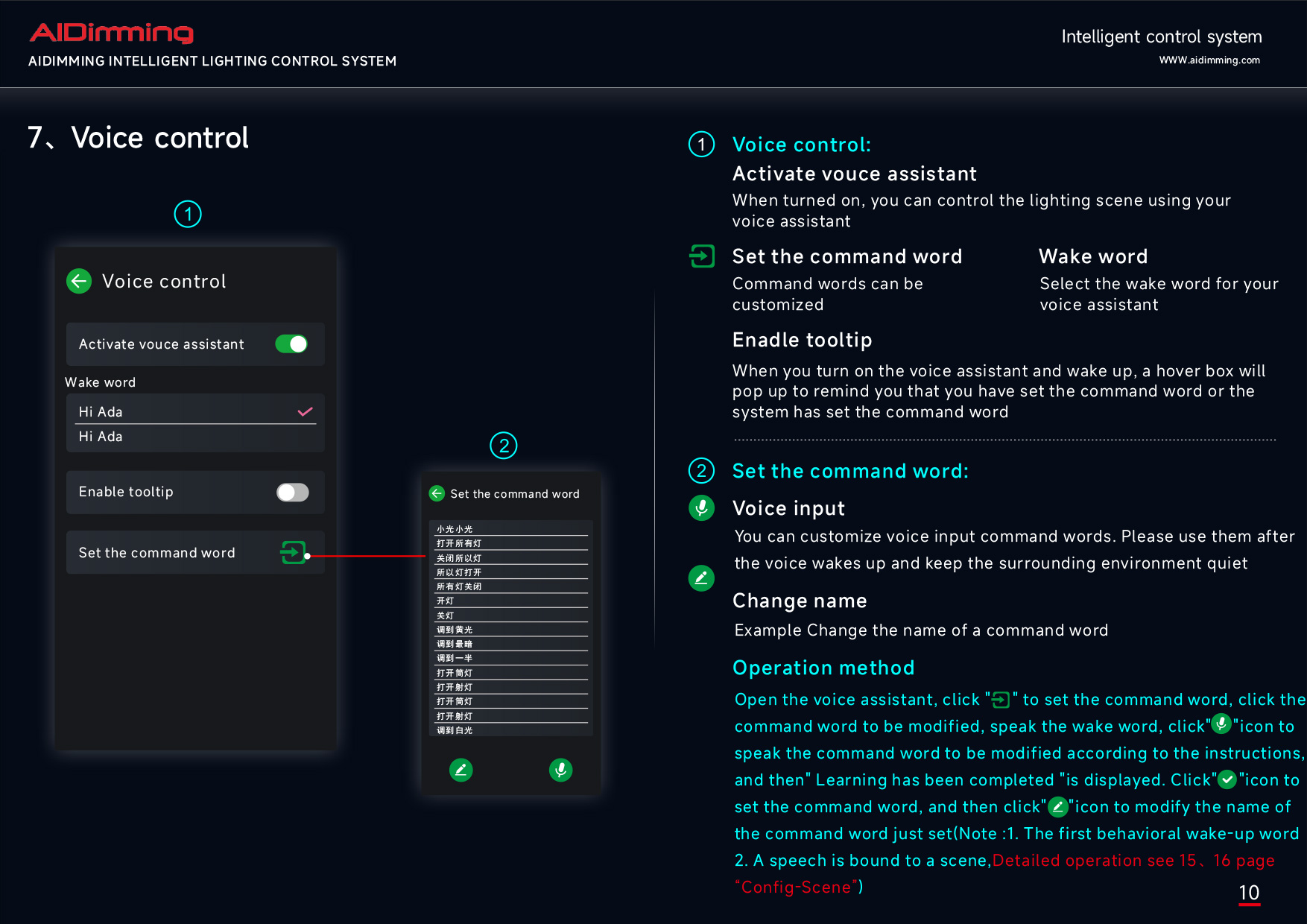

  • Offline voice command (no network needed)

  • TUYA App compatibility for remote mobile management

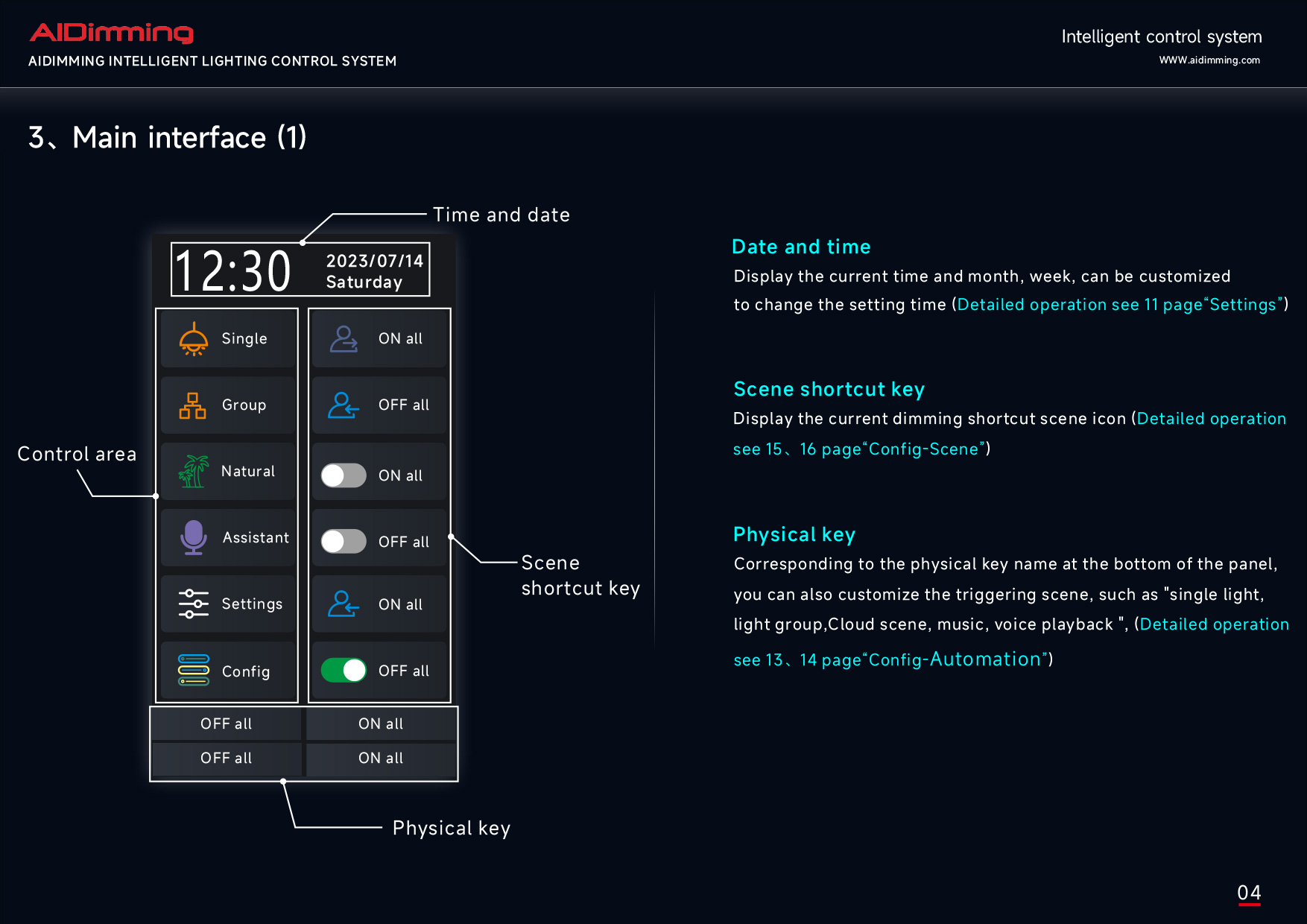

• Time Display
  The home screen shows real-time clock and date; adjustable via screen

• Night Light Mode
  Gentle illumination feature for nighttime comfort

Product Highlights

• Scene customization with four physical buttons

• Stable communication via DALI bus and ZigBee wireless

• High compatibility with intranet or external wireless access

• Supports up to 64 power supplies

Technical Summary

• Display: 5.0” HD color IPS (480×854 resolution)

• Control Types: RGB, RGBW, RGBCW, CCT

• Voice Control: Offline, power only

• App Control: TUYA (via ZigBee)

• Buttons: 4 physical metal buttons

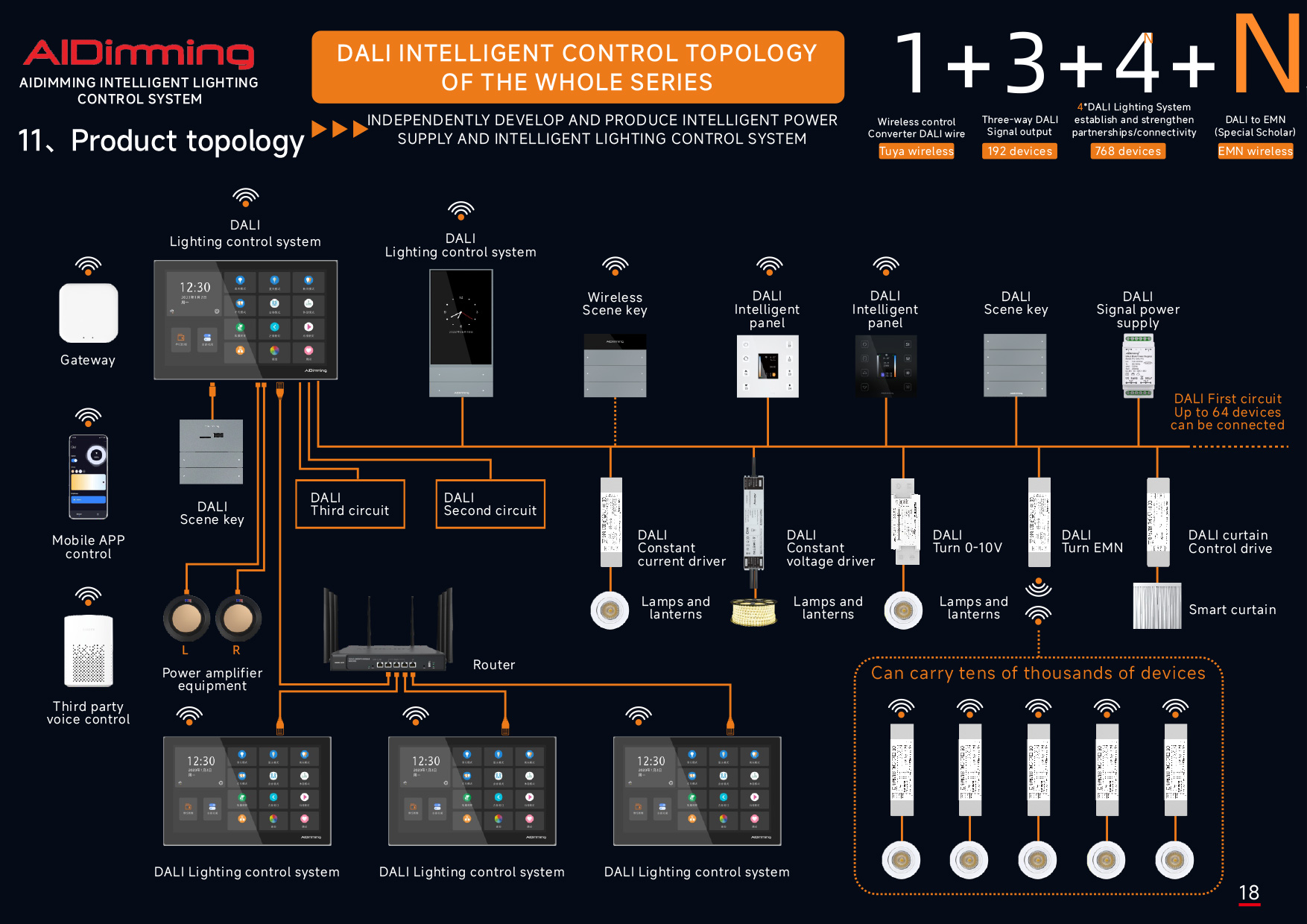

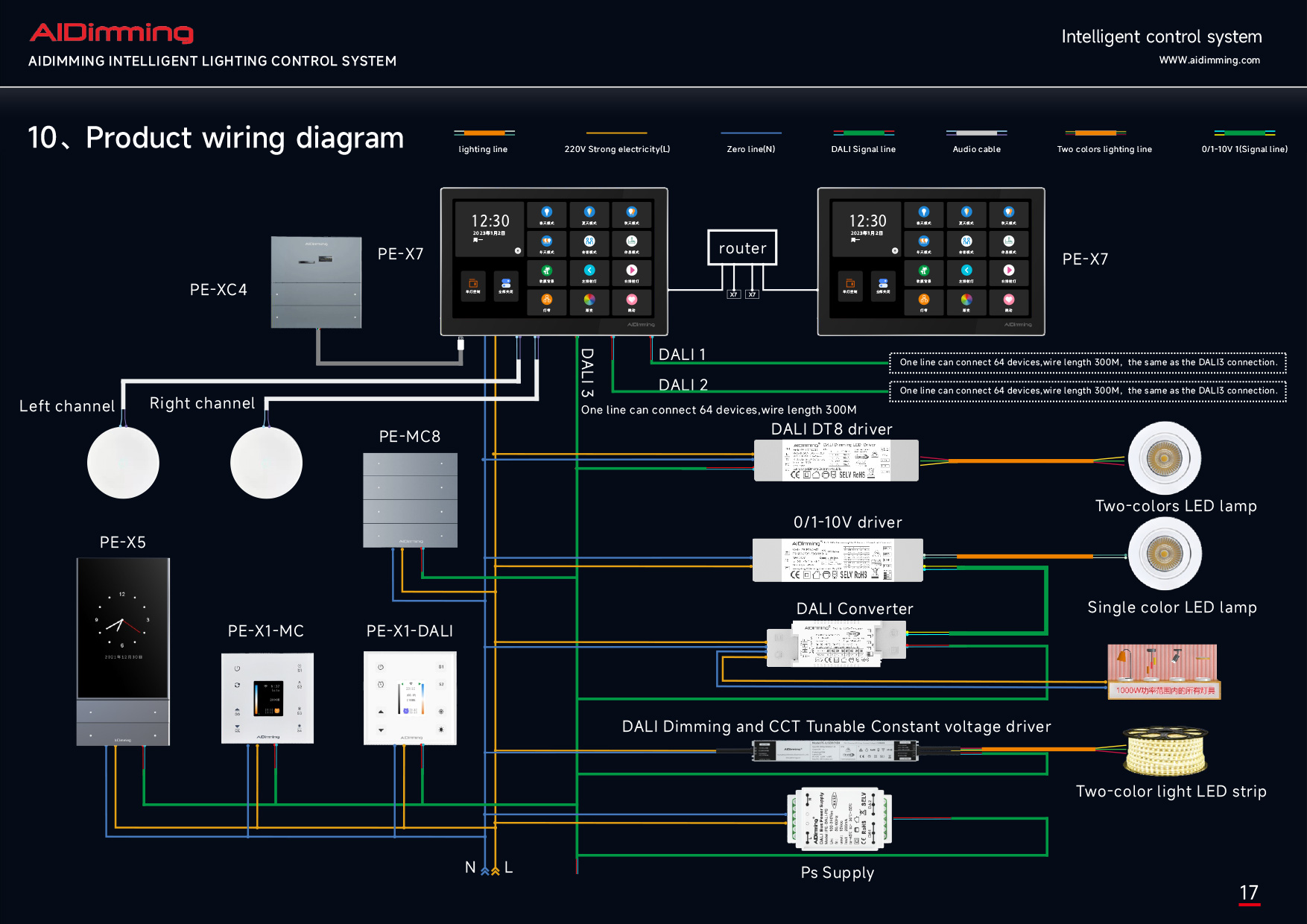

• Protocols:

  • DALI digital lighting bus + PS bus power

  • ZigBee wireless bus

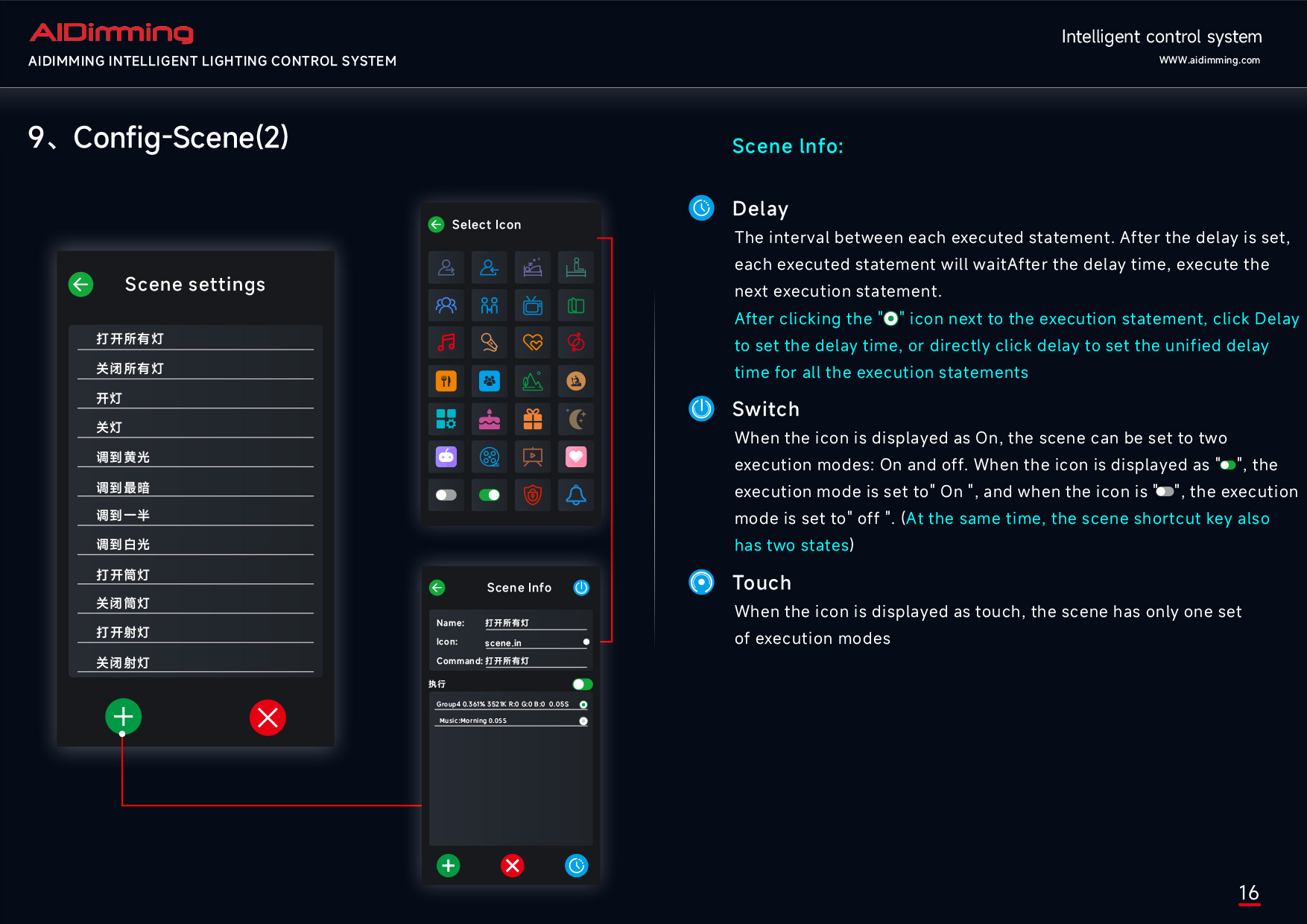

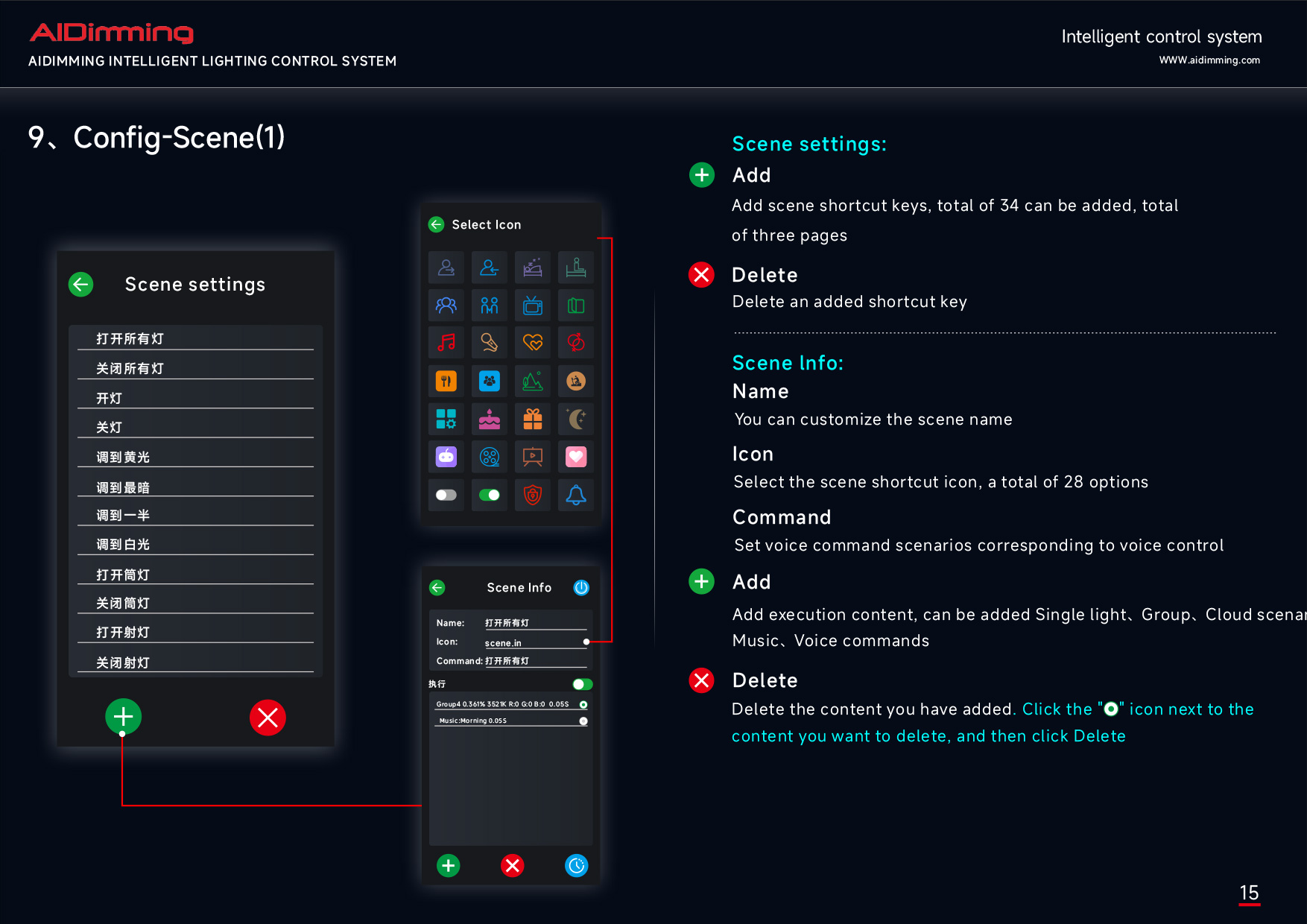

• Lighting Scene Control: Customizable scenario groups

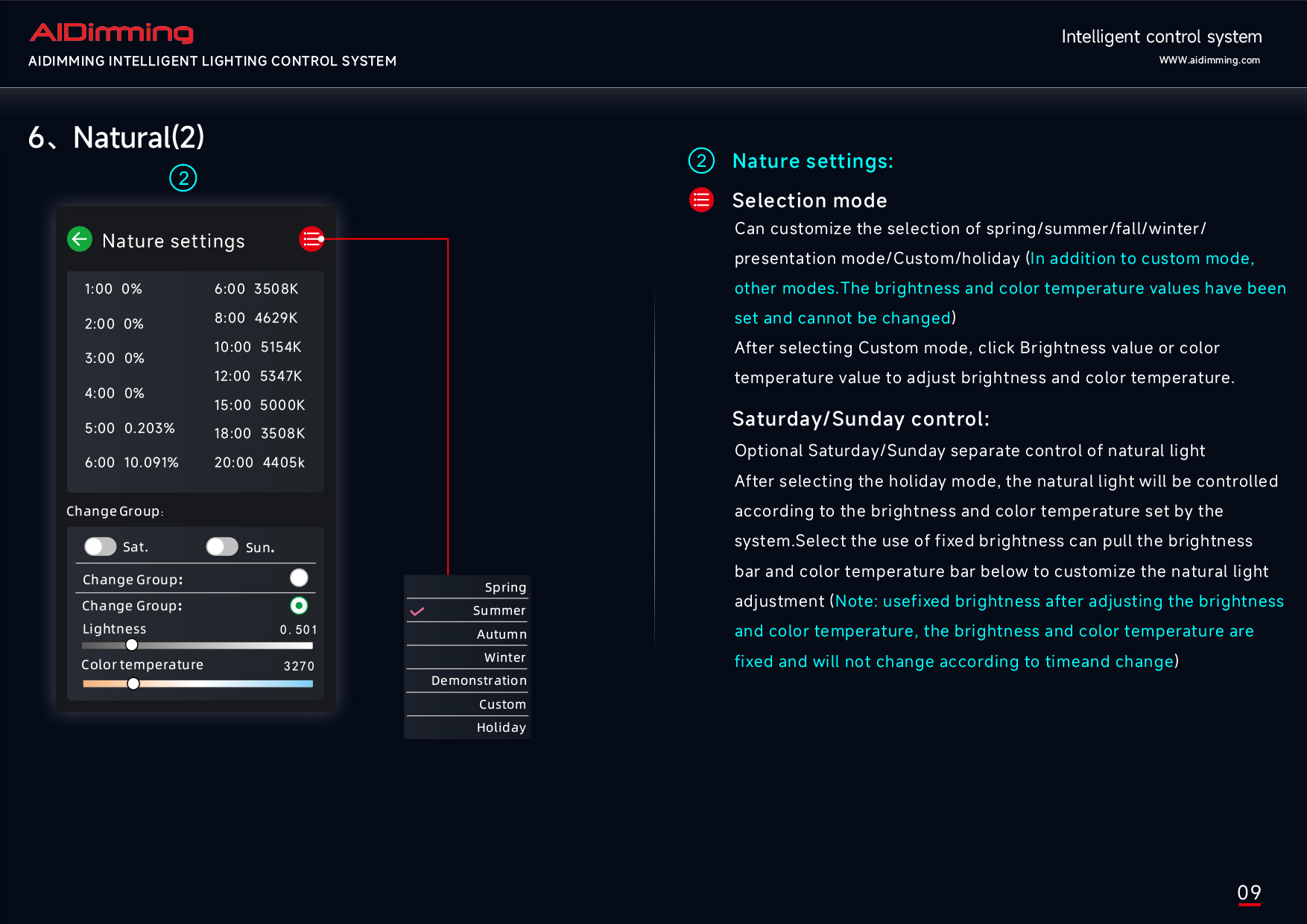

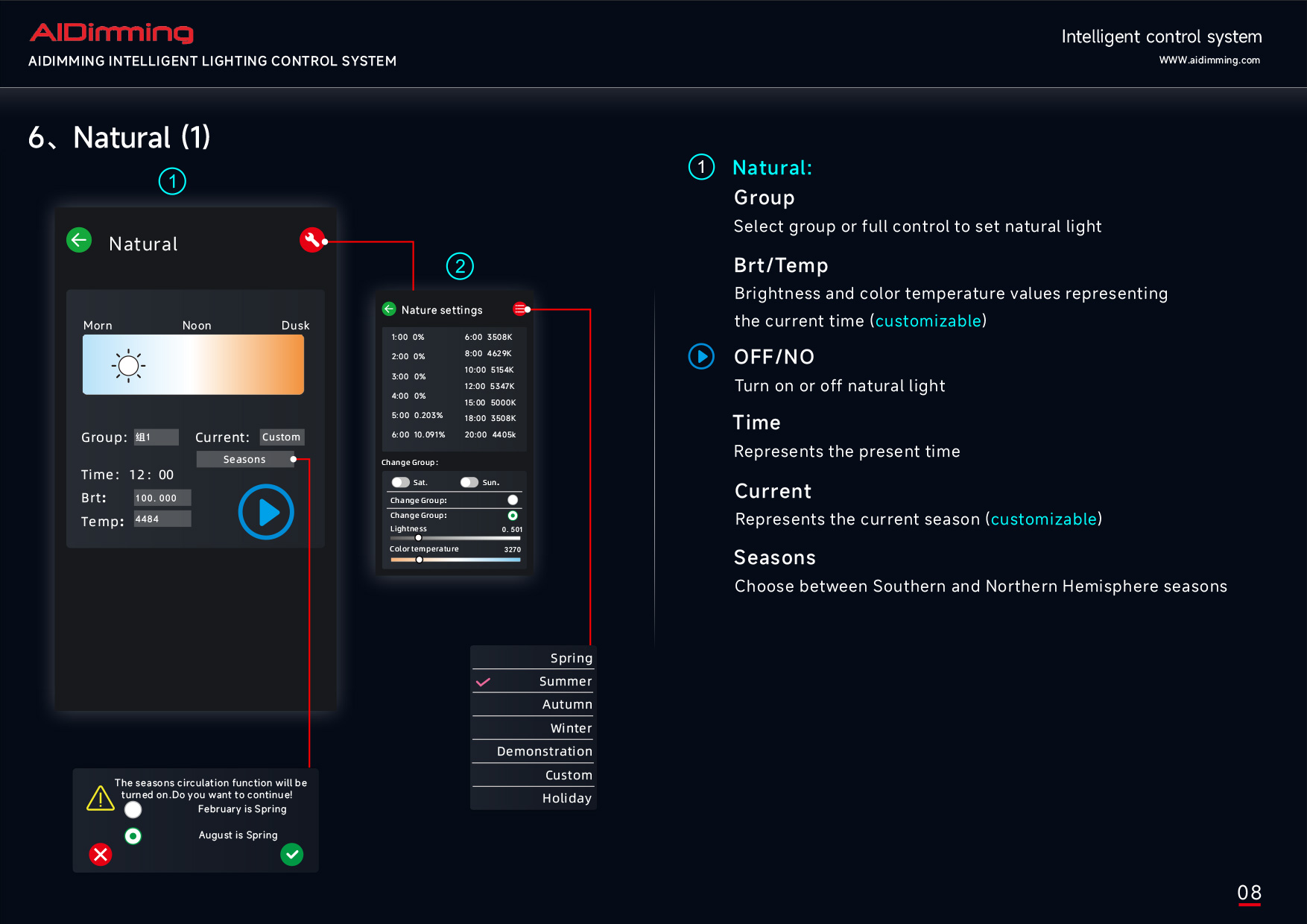

• Natural Light Rhythm: Advanced algorithm for daily light cycle simulation

Applications

• Luxury villas & smart homes

• Office lighting automation

• Museum and exhibition lighting

• Commercial building lighting upgrades

• Professional lighting scenes with intelligent presets
