AiDiming PE-X1-MC (V5) Smart Dimming Control Panel – Zigbee & TUYA Enabled Multi-Scene DALI Controller

Product Description

The AiDiming PE-X1-MC (V5) is a compact yet powerful intelligent DALI control panel tailored for smart lighting environments. Designed for compatibility with dual-color, monochrome, and RGBCW DALI drivers, this controller blends practical features with sleek aesthetics.

With built-in Zigbee support, TUYA app compatibility, customizable scene modes, and 12-point rhythm lighting control, it provides an advanced yet user-friendly interface for both residential and professional lighting systems. The backlit buttons offer intuitive tactile feedback, while the 8-key touch layout allows quick access to scenes and adjustments.

Key Features

• Built-in PS Bus Power Supply – Can be turned off to enable use as a scene panel

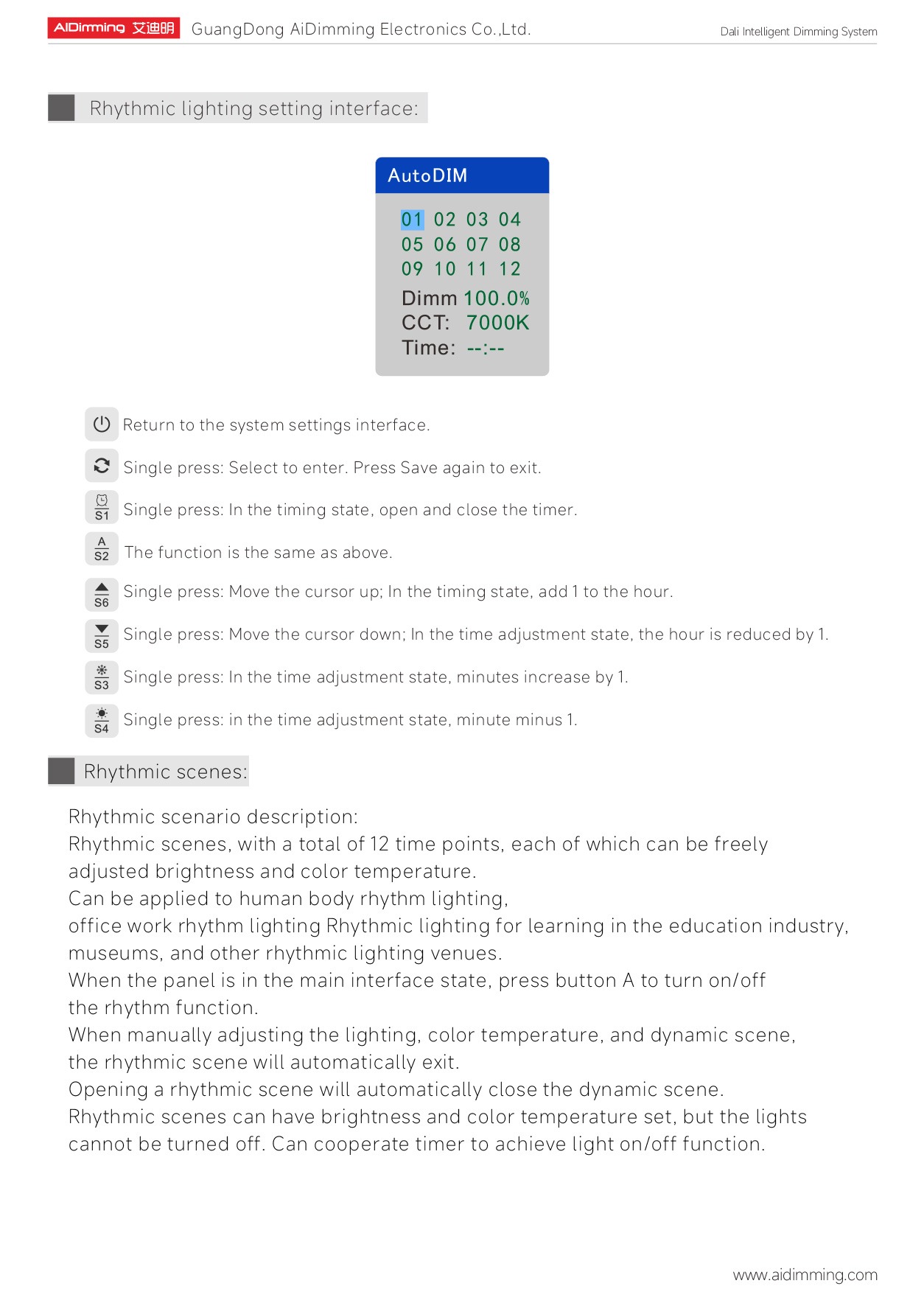

• 12-Point Rhythm Lighting – Automatically adjusts lighting based on time cycles

• Auto-Dimming Button Backlight – Reduces brightness after 8 p.m. for comfort

• Zigbee Chip Built-In – Supports interconnection between panels

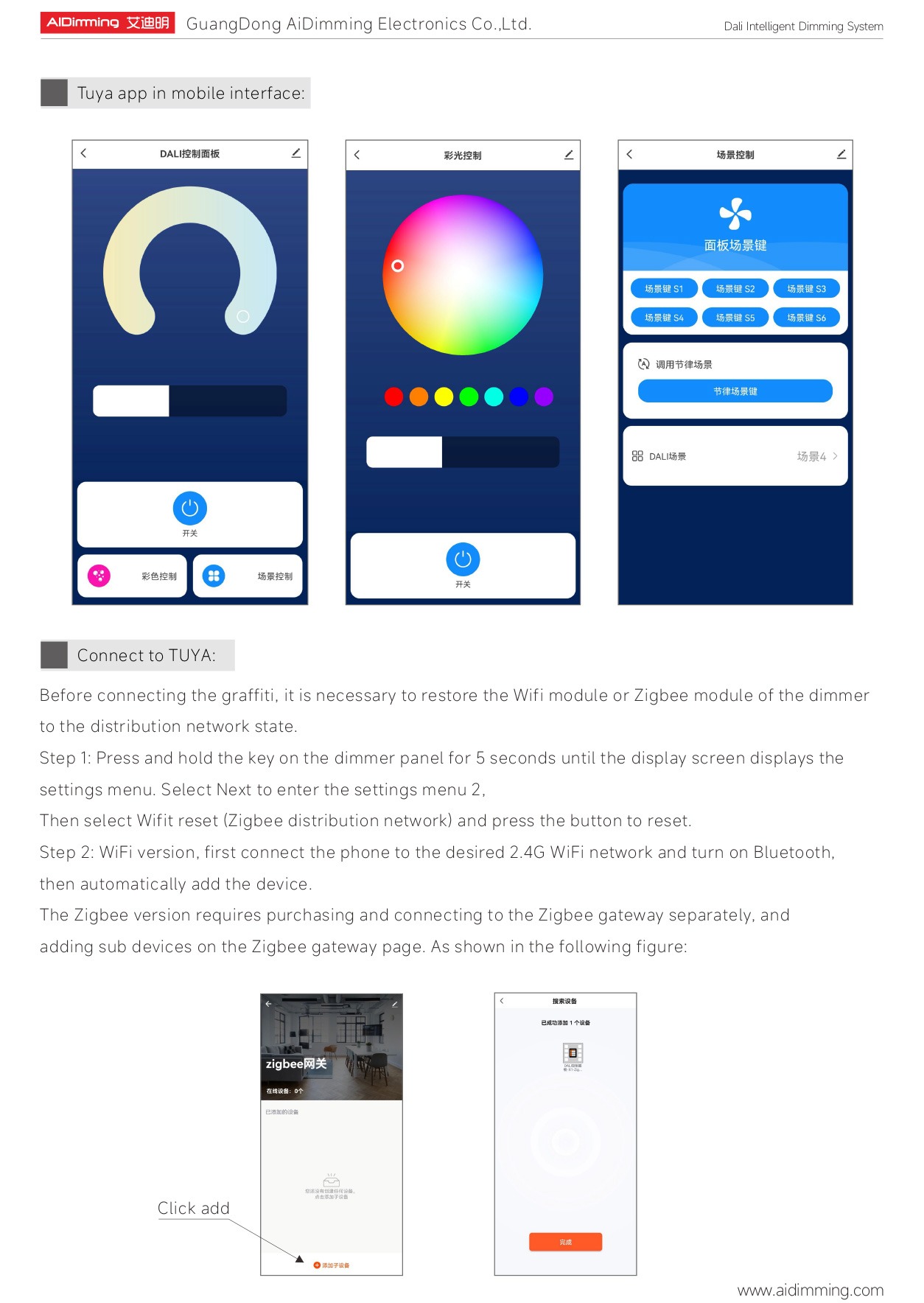

• Mobile TUYA App Control – Compatible with third-party voice platforms (e.g., Alexa, Google Assistant)

• Tactile Touch Feedback – Backlight and sound feedback upon pressing buttons

• CCT Range Configuration – Adjusts color temperature within LED specifications

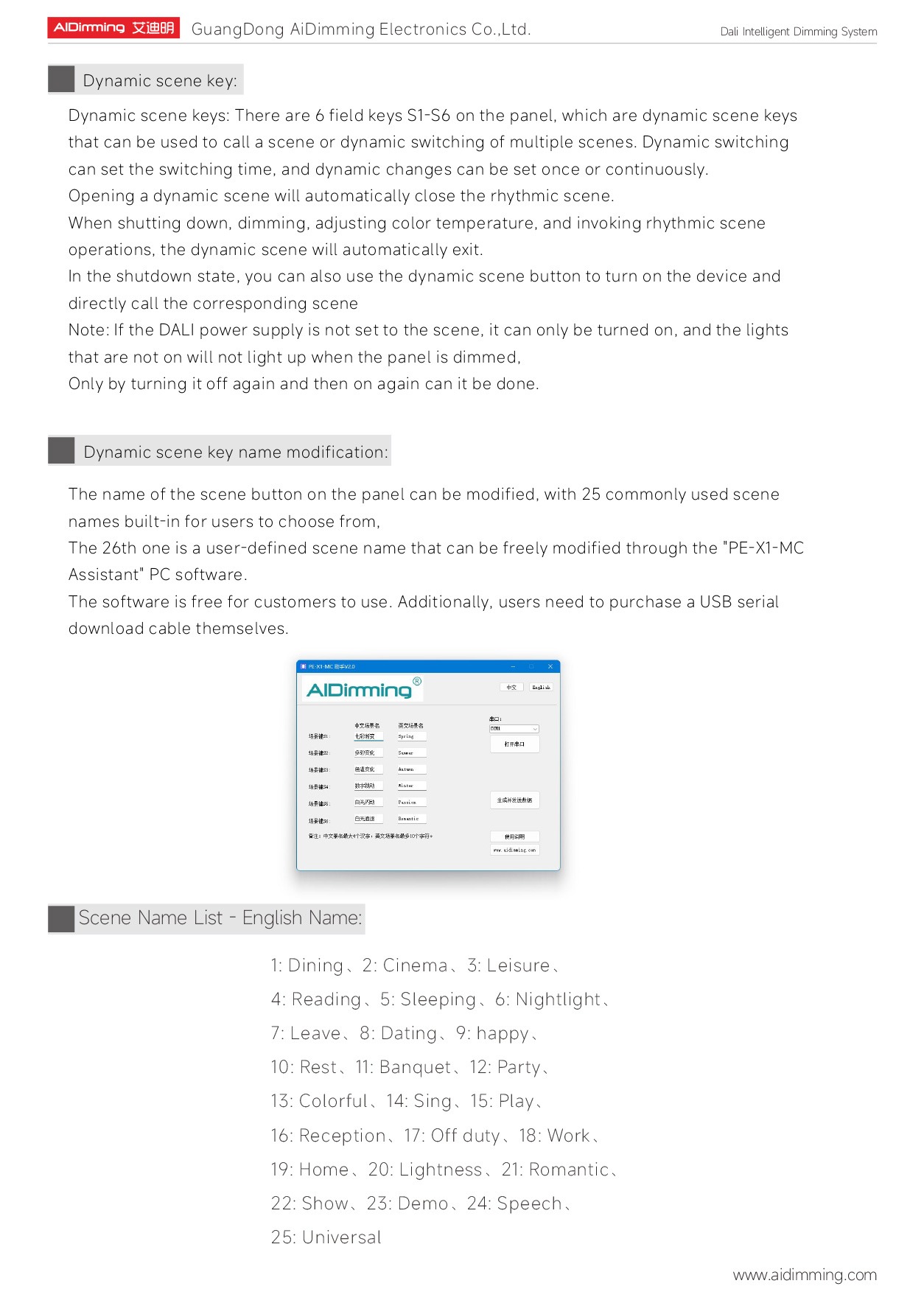

• Multi-Scene Customization – Configure and save up to 6 lighting scenes

• RGB Color and Saturation Adjustment – Enhances ambiance with vibrant color control

• PC Scene Name Editor – Download and modify scene names easily via PC

Technical Specifications

• Model: PE-X1-MC (V5)

• DALI PS Voltage: 12–22V DC

• Output Voltage: 17.5V DC ±5%

• Control Current: 125mA

• Dimming Range: 0–100%

• Dimming Interface: DALI (IEC62386)

• Power Down Mode: Memory retention

• Controlled Load: 64 DALI Addresses

• Input Voltage: 200–250V AC

• Frequency: 50/60Hz

• Touch Keys: 8

• App Support: TUYA App (Zigbee)

• Working Temp.: -20°C to 45°C (ambient), up to 80°C (casing)

• Humidity Range: 20–95% RH, non-condensing

• Dimensions: 86 × 86 × 33 mm

• Weight: 200g ±10g

• Packing: Box

Applications

• DALI RGB, RGBCW, Dual-Color & Monochrome Driver Control

• Villa & Smart Home Lighting Systems

• Wireless Museum Lighting Control

• High-End Commercial Building Integration

• Professional Lighting Intelligent Upgrades
