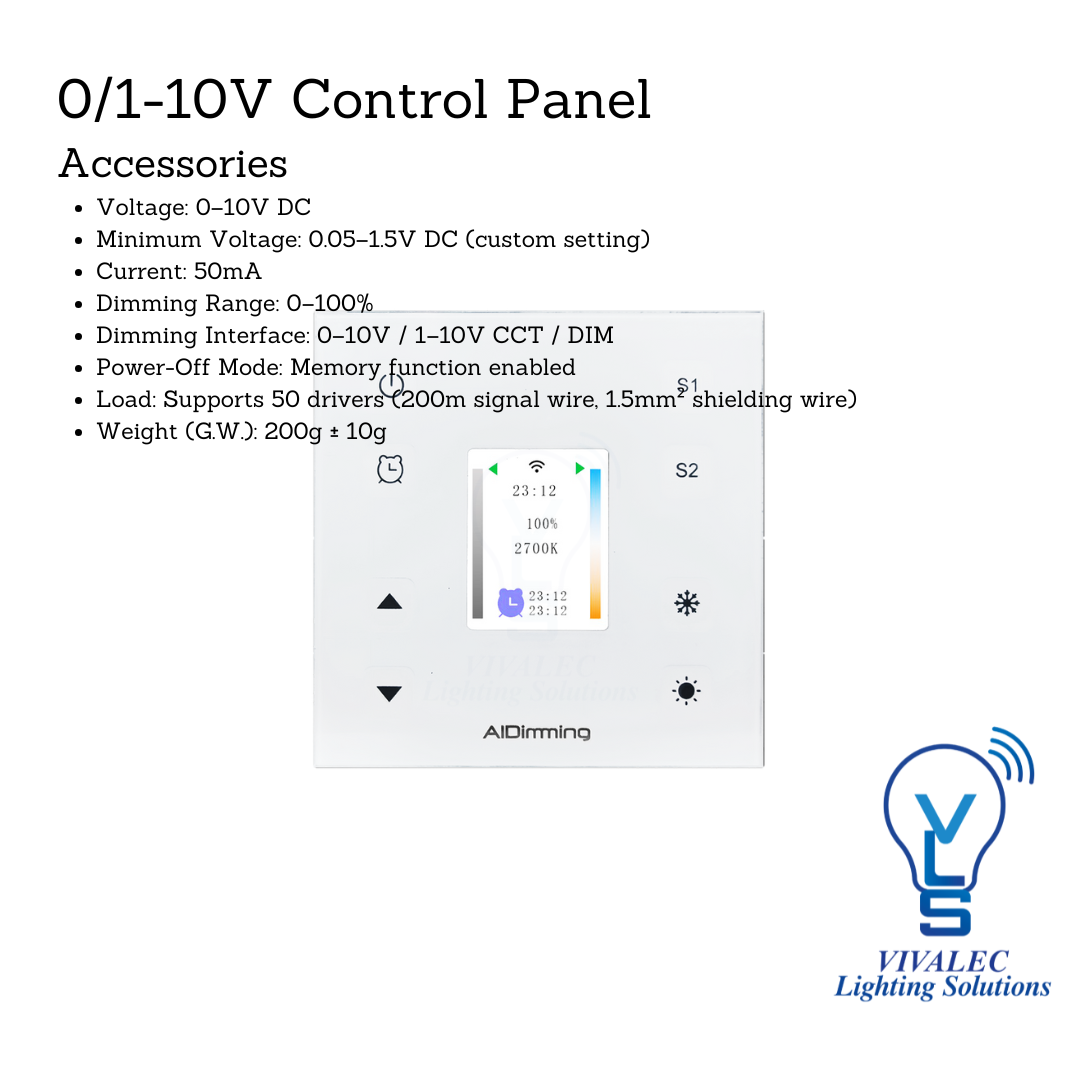

AiDiming PE-X1-10V Smart Control Panel – 0/1-10V Dimming & CCT Touch Controller with TUYA App and Voice Support

Product Description

The AiDiming PE-X1-10V is a modern 0/1-10V dimming and color temperature control panel designed for precision lighting management in both residential and commercial spaces. With an intuitive HD touch screen interface and a durable tempered glass finish, it supports active/passive signal output, scene customization, app control, and offline voice operation.

This controller is compatible with all standard 0/1-10V dimming drivers and CCT systems, providing a seamless solution for intelligent lighting environments like smart homes, museums, and high-end buildings.

Key Features

• Standard 0-10V / 1-10V Output – Active and passive signal compatibility

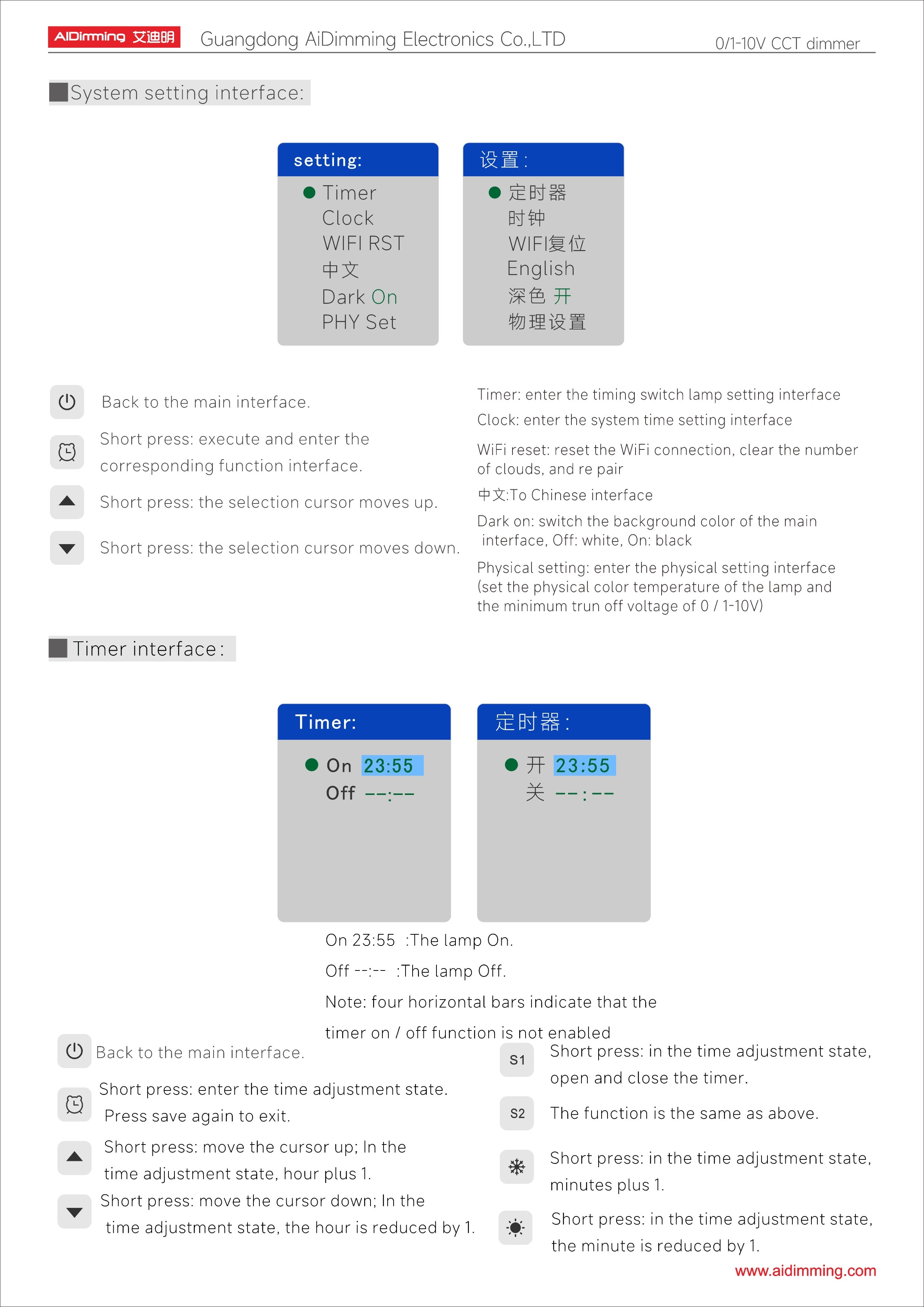

• Timing On/Off Function – Schedule your lighting operation with ease

• Built-In Active Power Supply – Compatible with all types of 0/1-10V drivers

• Auto-Dimming Backlight – Screen dims after 8 p.m. to conserve energy

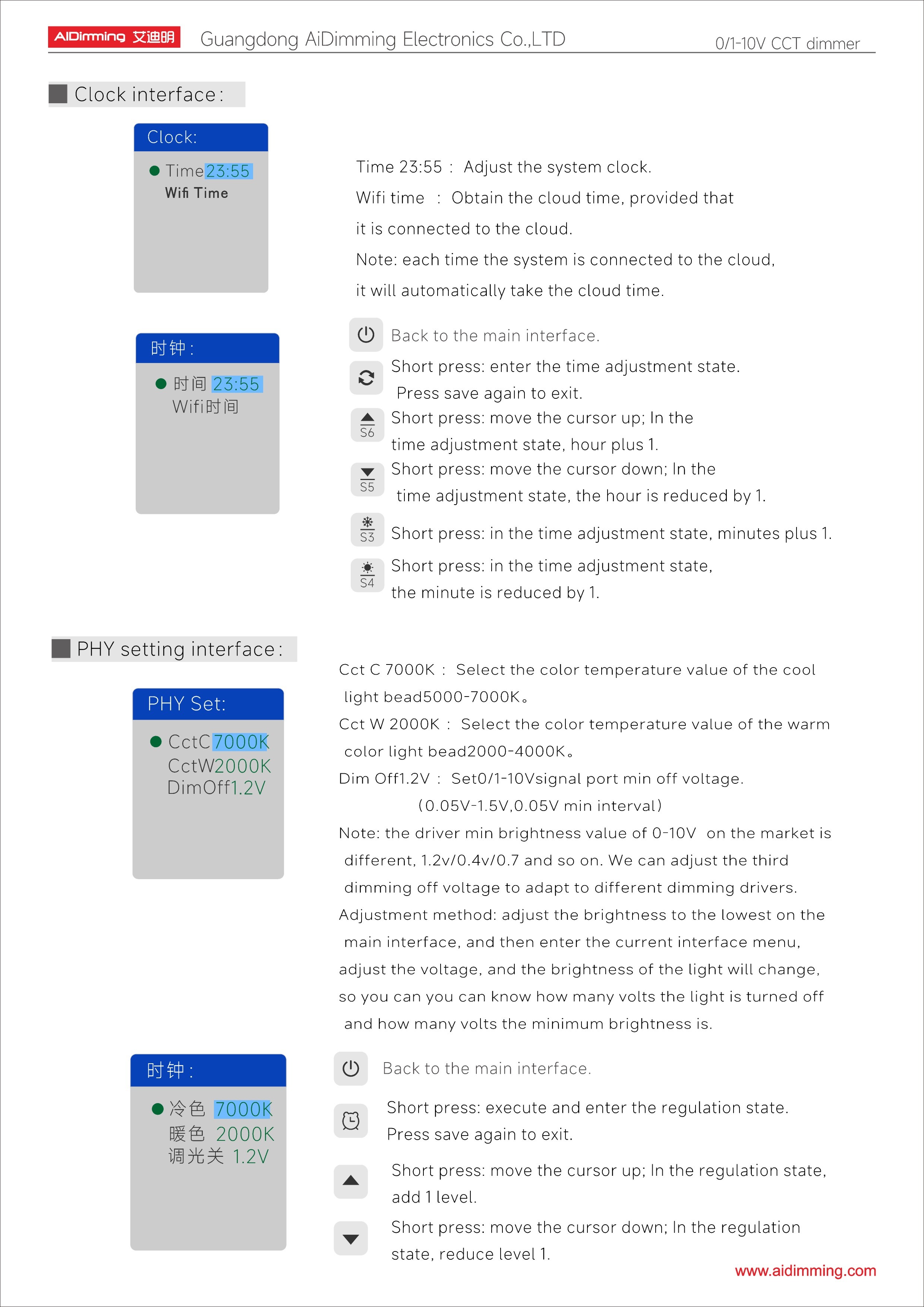

• Built-In WiFi Module – Enables real-time time syncing and mobile control

• Mobile App Integration – TUYA app compatible; supports third-party voice platforms

• Touch Button Feedback – Red backlight and audible tone upon pressing

• Tempered Glass Panel – High durability with sleek, modern design

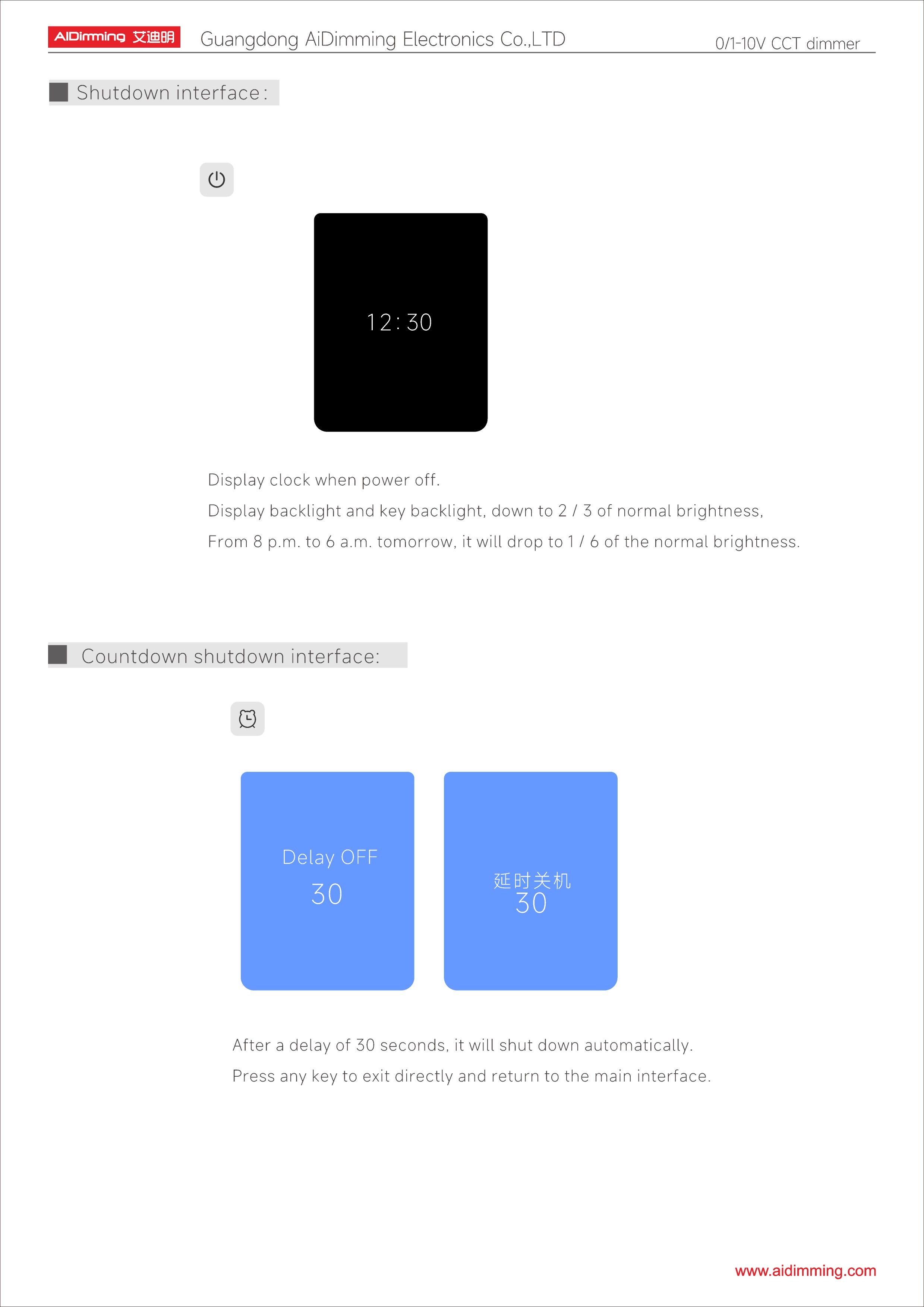

• 30s Auto Power-Off Delay – Energy-saving switch-off function

• Custom Voltage Settings – Match any 0/1-10V power supply

• Adjustable CCT Range – Color temperature can be set per LED specs

Technical Highlights

• Voltage Range: 0–10V DC

• Min Voltage Setting: 0.05–1.5V DC (customizable)

• Current: 50mA

• Dimming Range: 0–100%

• Input Voltage: 110–250V AC

• Frequency: 50/60Hz

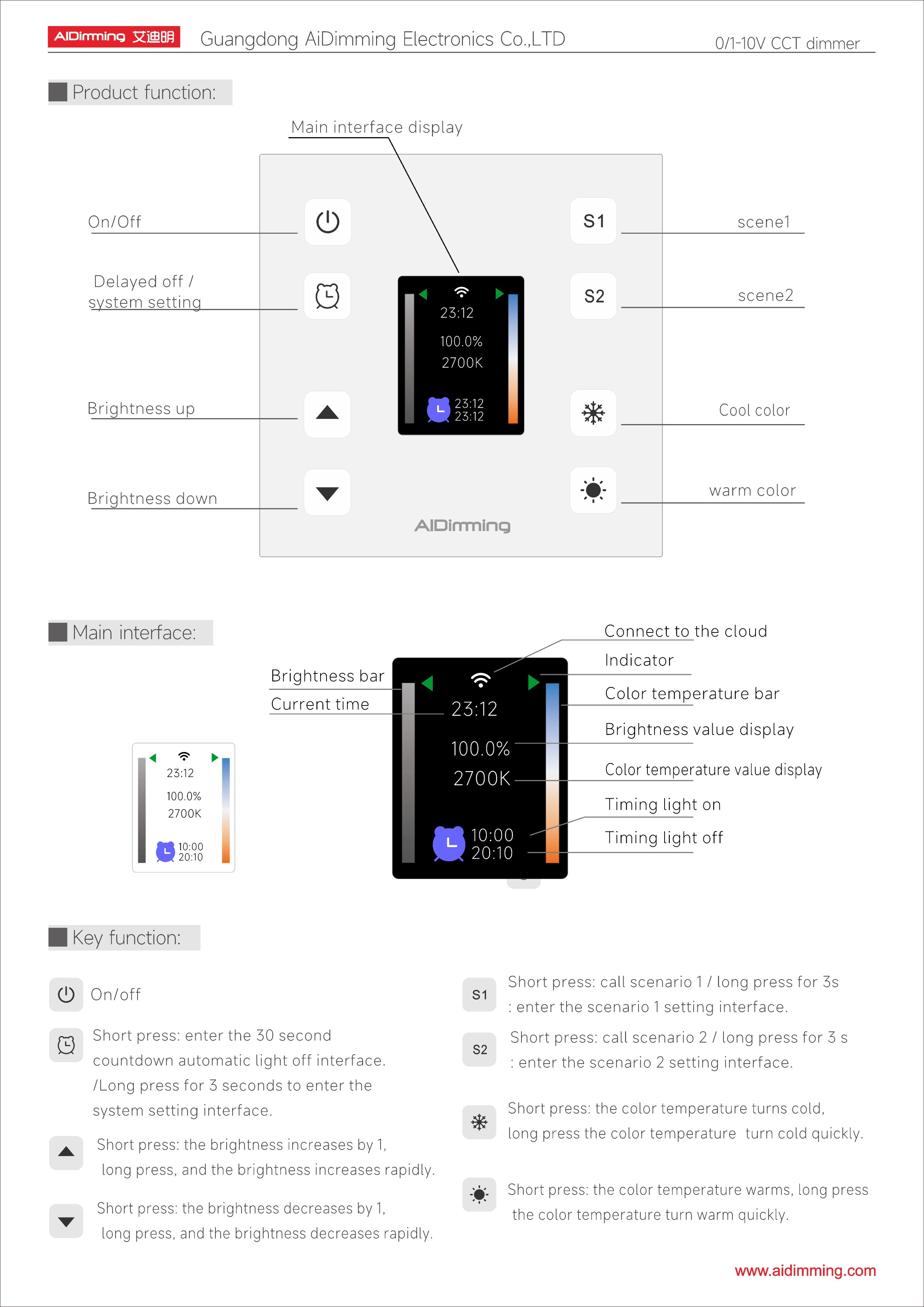

• Touch Keys: 8 keys

• Color Temperature Setting: Custom adjustable

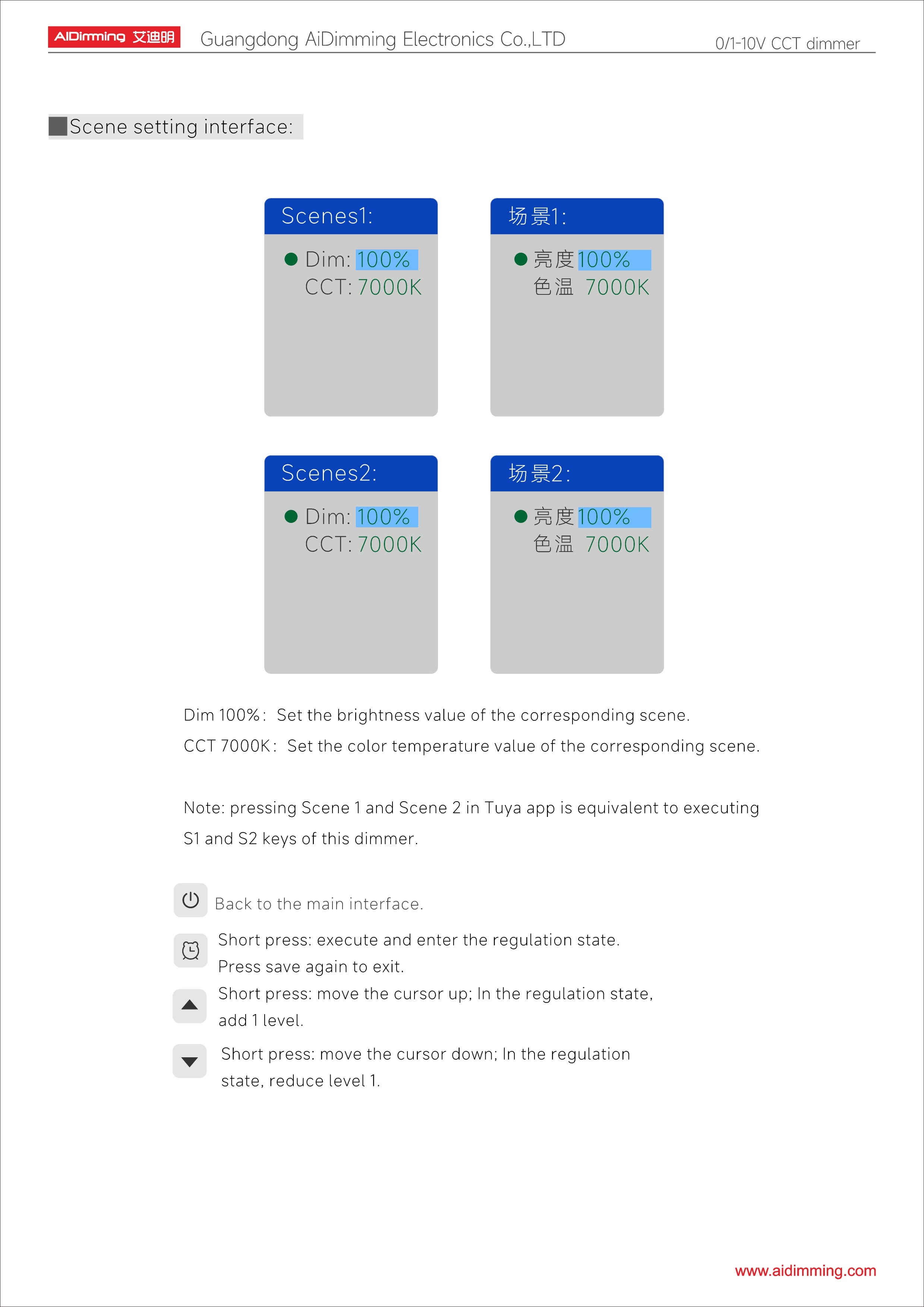

• Scene Control: Supports 2 scenarios

• Mobile App: TUYA compatible

• Delay Off: 30 seconds

• Working Temp: ta: 45°C, tc: 80°C

• Humidity: 20–95% RH (non-condensing)

• Storage Conditions: -40°C to 80°C, 10–95% RH

• Safety: 3750V AC withstand voltage, 100MΩ isolation resistance

• Dimensions: 86 × 86 × 33 mm

• Weight: 200g ±10g

• Packing: Color box

Applications

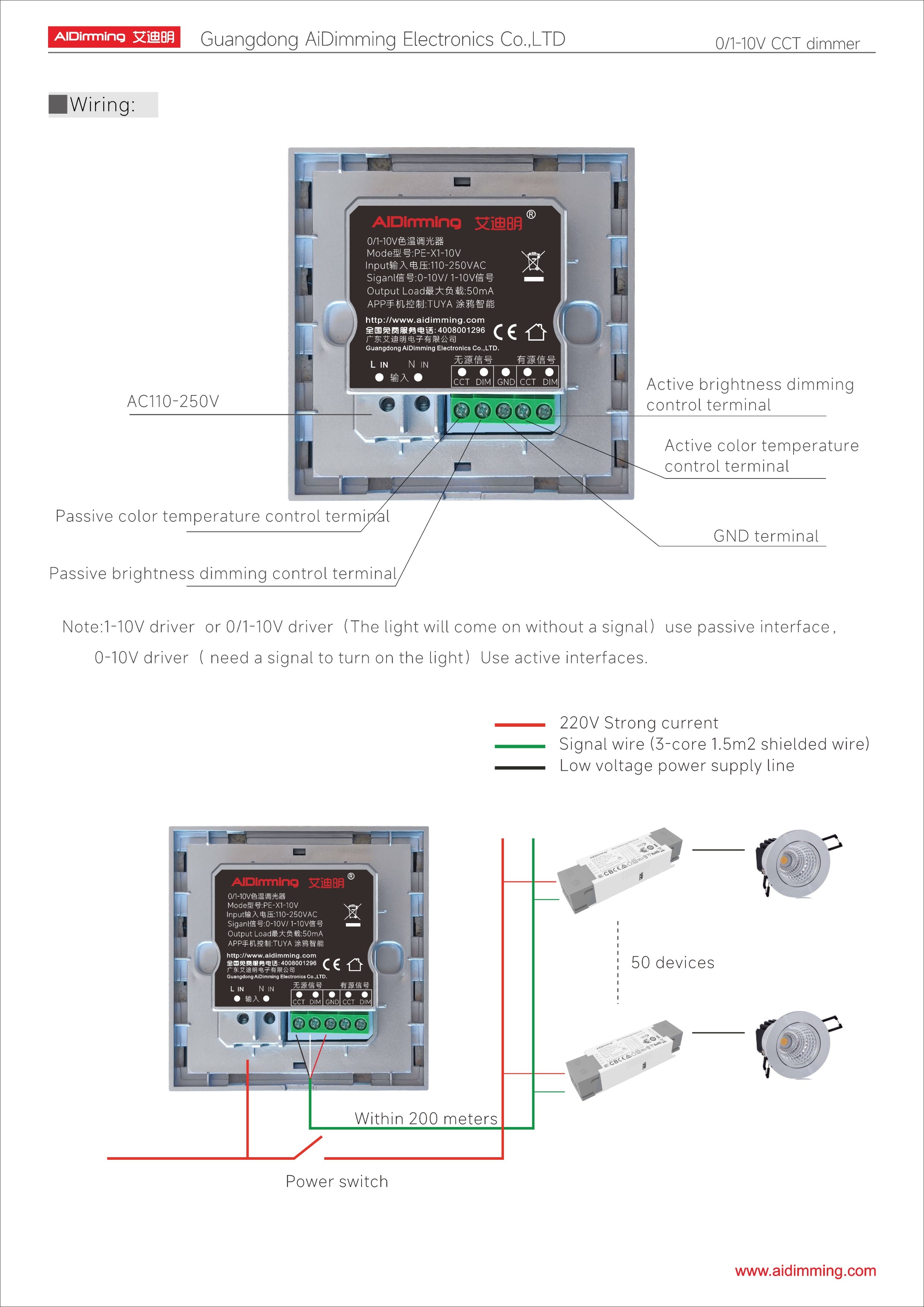

• 0/1-10V dimming driver and CCT driver control

• Smart villas and residential lighting

• Museums and galleries

• High-end commercial buildings
