Features:
-
DALI standard interface with DT6 protocol, compliant with DALI 144 standards
-
Certified DALI2 member
-
Digital output control, flicker-free lighting
-
Wide AC input range: 100–277V
-
Aluminum shell with natural air cooling, moisture-proof and heat conductive
-
Deep dimming capabilities
-
Comprehensive protection (overheat, overload, short circuit)
-
IP65 waterproof design
-
NFC programmable for current setting
-
10.4kV lightning surge protection
-
Low standby power consumption (<0.5W)
Applications:
-
LED light sources
-
Villa intelligent lighting systems
-
Wireless smart lighting setups
-
Subway lighting
-
High-end commercial lighting
General Description:

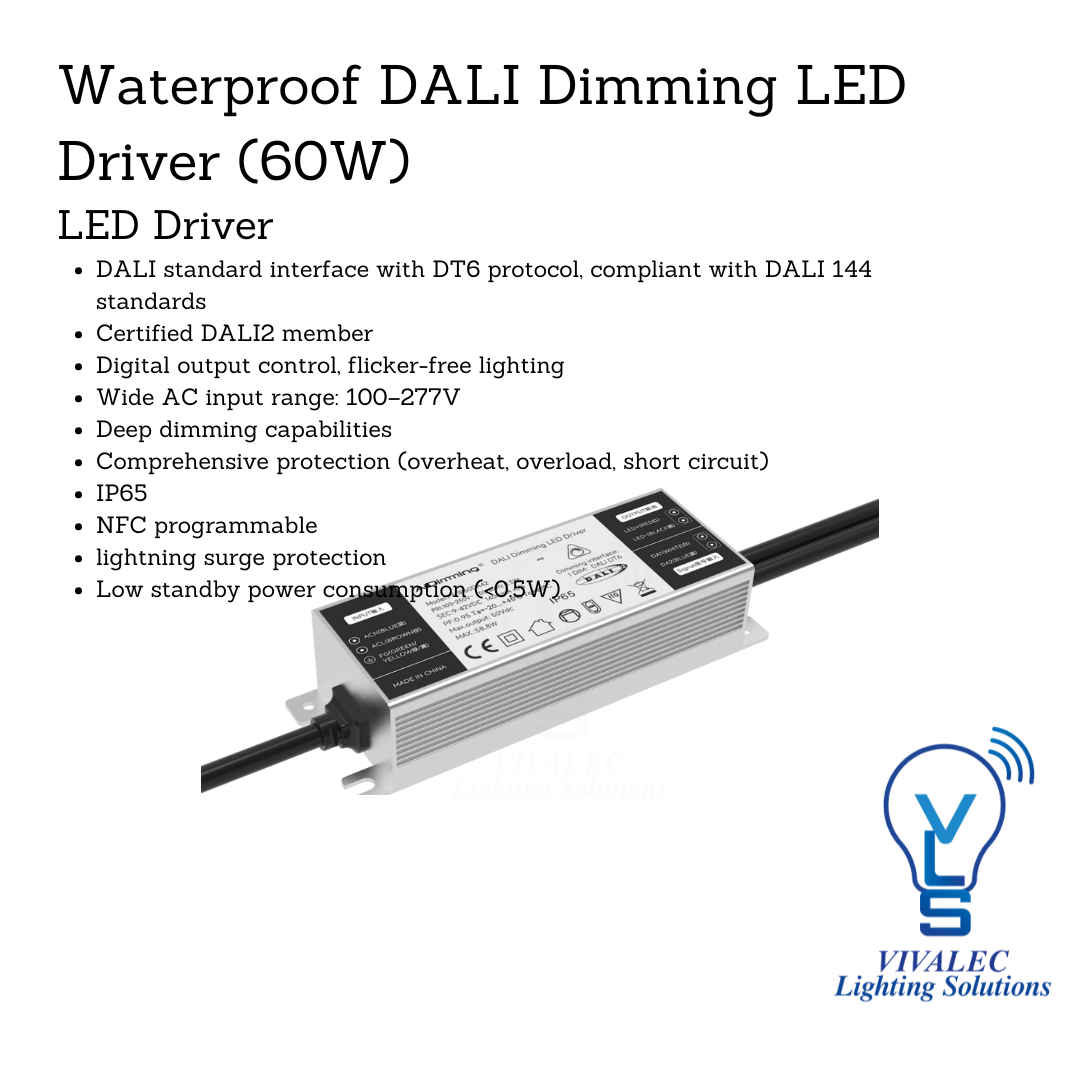

The AiDiming PE-PL60DA DALI dimming LED driver is engineered for precision brightness control using the DALI signal, offering both smooth fade-in/out and highly responsive dimming performance. Built with premium-grade imported chips and first-line branded materials, it integrates seamlessly with DALI intelligent systems and KNX protocol-based platforms. A silicone thermal conduction design ensures reliable and stable heat dissipation, while its IP65-rated housing makes it ideal for demanding environments.
Technical Specifications:
| Model | PE-PL60DA42 |
|---|---|
| Output Voltage | 9–42Vdc |
| Non-load Voltage | 52.8Vdc |
| Output Current | 700–1400mA (NFC current regulation) |
| Output Power | 6.3W–58.8W |
| Dimming Interface | DALI (IEC62386), <2mA / PUSH DIM |
| Power Factor | PF≥0.99/100V |
| Efficiency | 88.5% |
| Standby Power | <0.35W |
| Input Voltage | 100–250Vac (AC277V) |
| THD | <5% @ full load |
| Inrush Current | cold start 80A @ 500ns @ 230Vac |
| Working Temp | ta: 55°C, tc: 90°C |
| Working Humidity | 20–95%RH, non-condensing |
| Protection | Overheat / Overload / Short Circuit |
| Lightning Surge | 4kV |
| Waterproof Grade | IP65 |

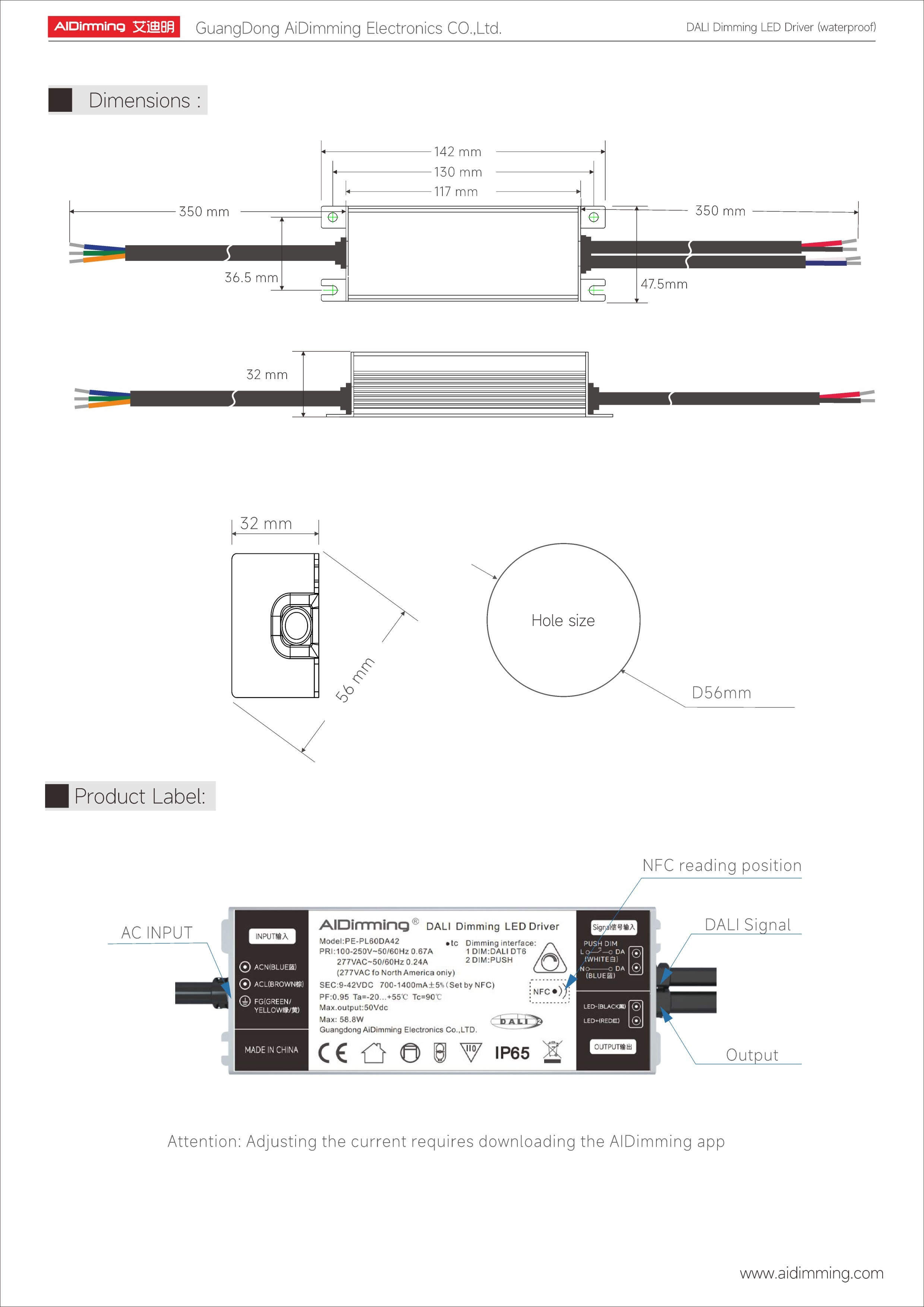

| Dimension | 117(142)×47.5×32mm (L×W×H) |
| Weight | 395g ±10g |
