✅ Features:
-
DALI standard interface, DT6 protocol compliant with DALI 144 standards
-
DALI2 certification, DALI member
-
Digital control output, flicker-free performance
-
Supports international AC input range: 100–277V
-
Aluminum shell with natural air cooling and silica gel for heat dissipation
-
Deep dimming with smooth output
-
Multiple protection features: overheat, overload, and short-circuit protection
-
IP65 waterproof design for outdoor/harsh environments
-
NFC design allows parameter adjustment
-
10.4kV lightning surge design
-
Standby power consumption < 0.5W
Application:
-
LED light source systems
-
Villa & smart home intelligent lighting
-
Wireless intelligent lighting
-
Subway lighting
-
High-end commercial lighting
General Description:
The PE-PL30DA and PE-PL45DA are waterproof DALI dimming LED drivers designed for intelligent lighting systems requiring high protection and deep dimming. These models feature NFC configuration, ultra-low standby power, and an IP65 aluminum enclosure ideal for harsh or wet environments. Compatible with both DALI intelligent dimming and KNX systems, the output remains stable due to superior heat conduction via silicone thermal pads.
Specifications:
| Specification | PE-PL30DA42 | PE-PL45DA42 |
|---|---|---|
| Output Voltage | 9–42Vdc | 9–42Vdc |
| Output Current | 250–700mA (NFC current regulation) | 600–1050mA (NFC current regulation) |
| Output Power | 2.25W–29.4W | 5.4W–44.1W |
| Max Output Voltage | 50Vdc | 50Vdc |
| Dimming Interface | DALI (IEC62386) / PUSH DIM | DALI (IEC62386) / PUSH DIM |
| Power Factor | PF > 0.99 | PF > 0.99 |
| Efficiency (typ.) | 90% | 90% |
| THD | <7% at full load | <7% at full load |
| Input Voltage | 100–250Vac (AC277V) | 100–250Vac (AC277V) |
| Inrush Current | Cold start 645A 40ms @230Vac | Cold start 645A 40ms @230Vac |
| Surge Protection | L-N: 4kV | L-N: 4kV |
| Standby Power | <0.35W | <0.35W |
| Operating Temp | ta: 55°C, tc: 90°C | ta: 55°C, tc: 90°C |
| IP Rating | IP65 | IP65 |
| Vibration | 10–500Hz, 2G, 72min/axis (X, Y, Z) | 10–500Hz, 2G, 72min/axis (X, Y, Z) |

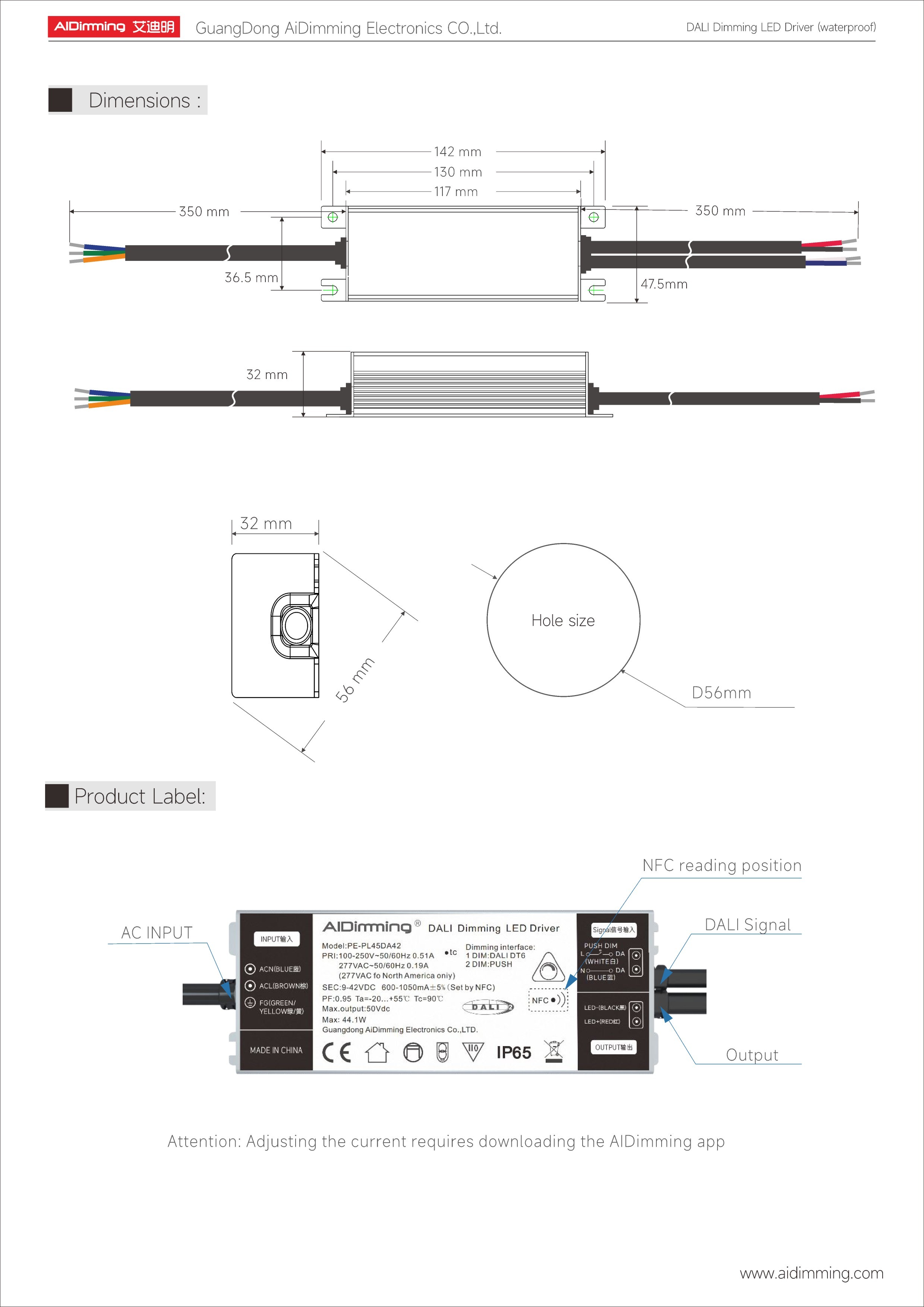

| Dimensions (L×W×H) | 117(142)×47.5×32mm | 117(142)×47.5×32mm |
| Weight | 395g ±10g | 395g ±10g |
