AiDiming PE-N1DA / PE-N2DA DALI Dimming LED Driver (14.7W / 21W)

Integrated with DALI, Push, 0-10V, 1-10V, PWM, and DIM interfaces, the AiDiming PE-N1DA and PE-N2DA LED drivers offer high power factor, wide compatibility, and precise dimming control in a compact housing. These drivers are ideal for both residential and commercial intelligent lighting applications, providing smooth dimming, advanced protection, and multiple control options.

Key Features:

Integrated DALI/Push/0-10V/1-10V/PWM/R DIM standard dimming interface
DALI2 certification & DALI member compliance
Flicker-free digital control output
International wide input voltage range: 100–250Vac
Built-in protection against short circuit, over current, and over voltage
High thermal conductivity with moisture-proof silicone heat dissipation
Suitable for both home and business lighting applications
Output fast pressure terminal for secure wiring
Global lighting safety code compliance
Protection Class II
5-year warranty

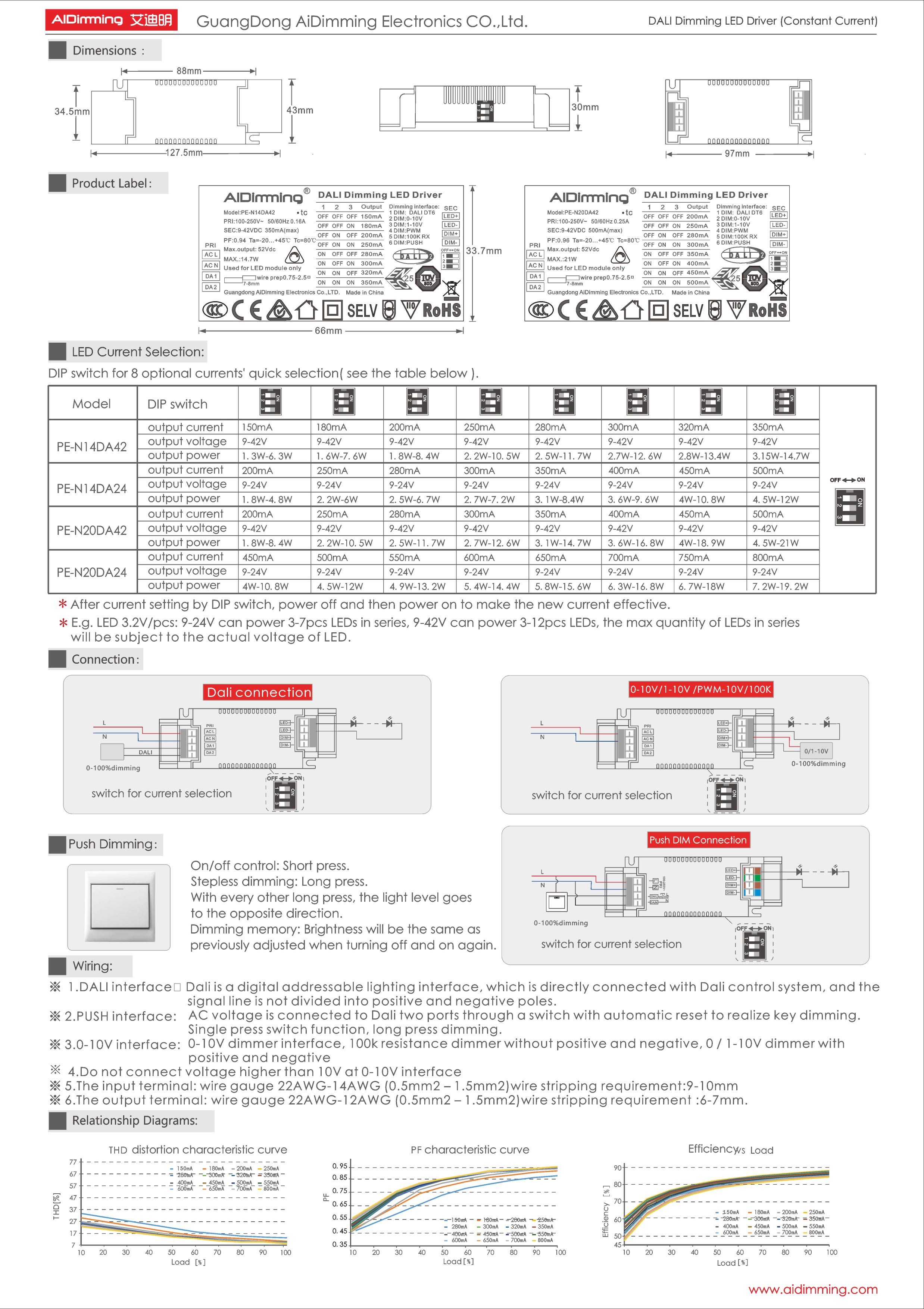

Specifications:

Model	PE-N1DA24	PE-N1DA42	PE-N2DA24	PE-N2DA42
Output Voltage	9–24Vdc	9–42Vdc	9–24Vdc	9–42Vdc
Output Power	1.8–4.2W	1.35–14.7W	4–9.2W	1.8–21W
Output Current	Up to 350mA	Up to 500mA	Up to 800mA	Up to 800mA
Dimming Range	0–100%, LED starts at 0.03% possible
Control Interface	DALI (IEC62386), Push, 0–10V/1–10V/PWM/100K DIM
PWM Dimming Frequency	>3600Hz
Accuracy	±3%
Power Factor	PF>0.99/100V at full load
Efficiency	Up to 85.4%
Protection	Over-heat, overload, short-circuit, non-load
Vibration	10–500Hz, 2G, 12min./1 cycle for 72min.
EMC	EN61000/EN61547 compliant
Dimension	127.5×97×43mm
Weight	116g ±10g
Ripple & Noise	Memory function after power down

Smart Dimming Modes (6-in-1):

DALI dimming: Standard DALI protocol, compatible with all DALI systems.
0-10V dimming: Uses standard 0-10V interface.
1-10V dimming: Uses standard 1-10V interface.
PWM dimming: 100K resistance dimming supported.
Push DIM: For manual key-based dimming.
R-DIM: Advanced relay-based dimming control (internal selection).

Application Scenarios:

LED Light Sources
Villa Intelligent Lighting
Wireless Intelligent Lighting Systems
Museum Lighting
High-End Commercial Lighting

⚙️ General Description:

The PE-N1DA/PE-N2DA series uses a high-power, low-loss switch control chip with imported high-efficiency components for optimal performance and stability. These drivers offer 6-in-1 dimming options without signal interference, ultra-deep dimming, and smooth brightness memory. Designed for modern smart lighting environments, they match all DALI intelligent dimming systems and even KNX protocol environments. The silicone heat conduction process ensures balanced thermal dissipation, ensuring safe and long-lasting operation.
