AiDiming PE-X1-DALI Smart Home Control Panel – DALI DT8 7” Touchscreen LED Dimmer with Wi-Fi & TUYA App Integration

Product Description

The AiDiming PE-X1-DALI Smart Control Panel is a cutting-edge DALI DT8 compatible dimmer and control unit, specially designed for high-end smart lighting applications. Equipped with a 7.0-inch capacitive HD touch screen, this tempered glass panel allows users to control color temperature and brightness precisely while managing up to 64 devices simultaneously.

Seamlessly integrated with the Tuya mobile app and supporting offline voice control, it offers modern convenience for residential and commercial lighting needs. With intuitive UI, intelligent linkage features, and a range of dimming and color management tools, it makes lighting control both functional and elegant.

Key Features

• Standard DALI Interface (DT8 Protocol) – Ensures compatibility with most professional DALI lighting systems.

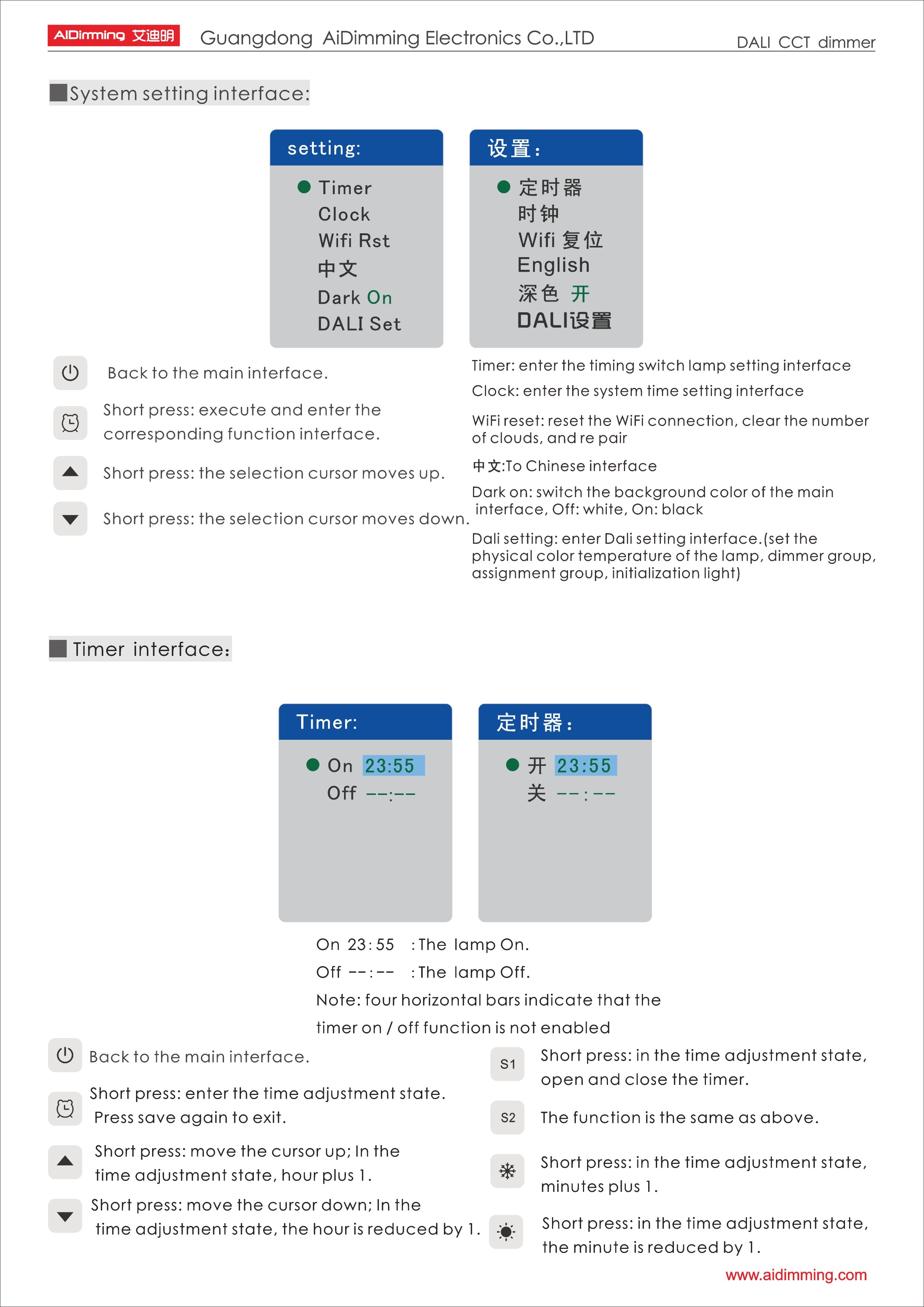

• Timing On/Off Function – Automate your lighting schedule with ease.

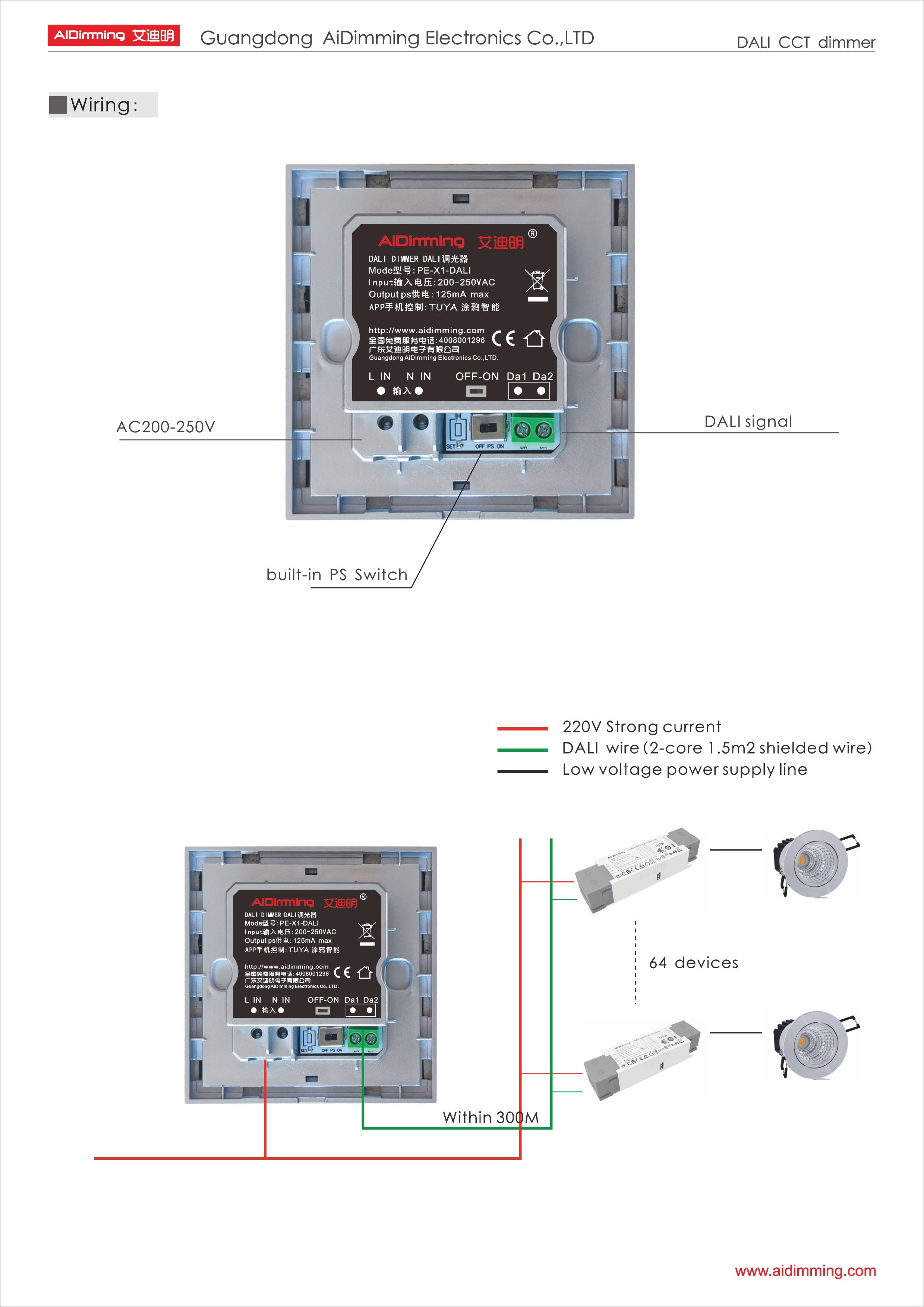

• Built-in PS Bus Power Supply – Allows toggle to scene panel mode when turned off.

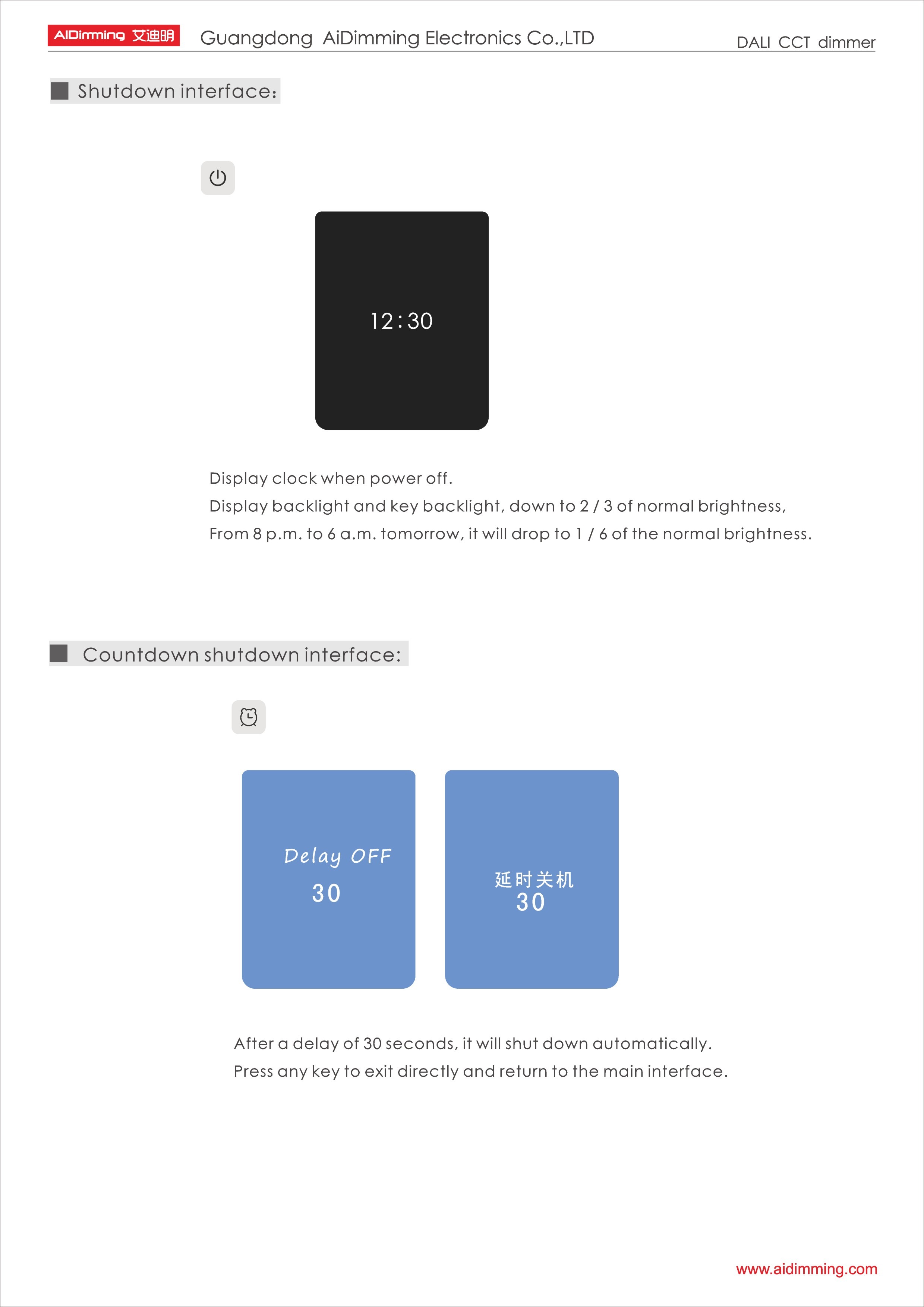

• Backlight Dimming – Panel dims automatically after 8 p.m. for energy saving.

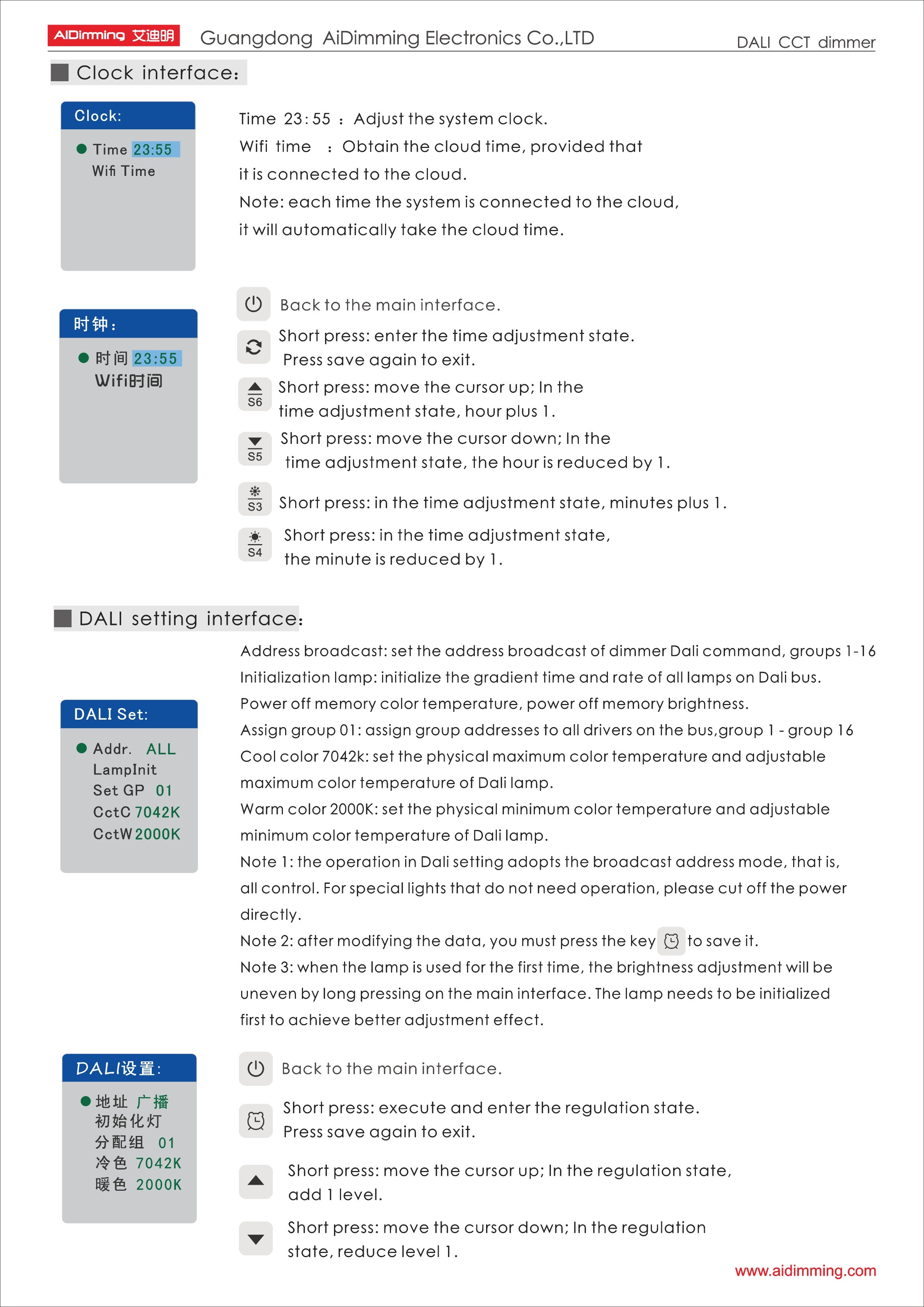

• Built-in Wi-Fi Chip – Supports real-time time updates and third-party app access.

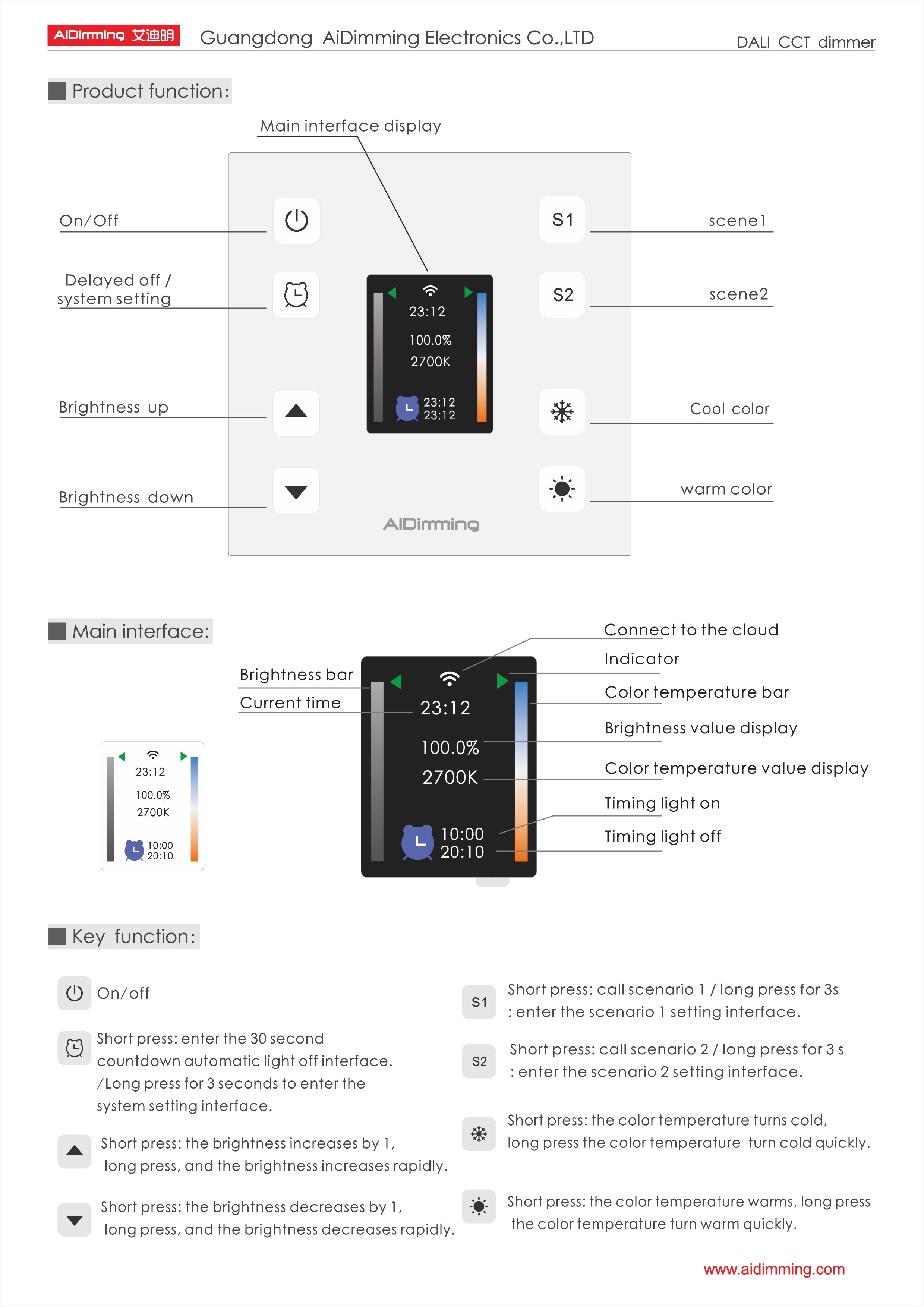

• Touch Feedback Alerts – Visual (red light) and audible feedback upon button press.

• Tempered Glass Panel – Durable and stylish design suited for modern interiors.

• 30s Auto Delay Off Function – Energy-efficient shutdown feature.

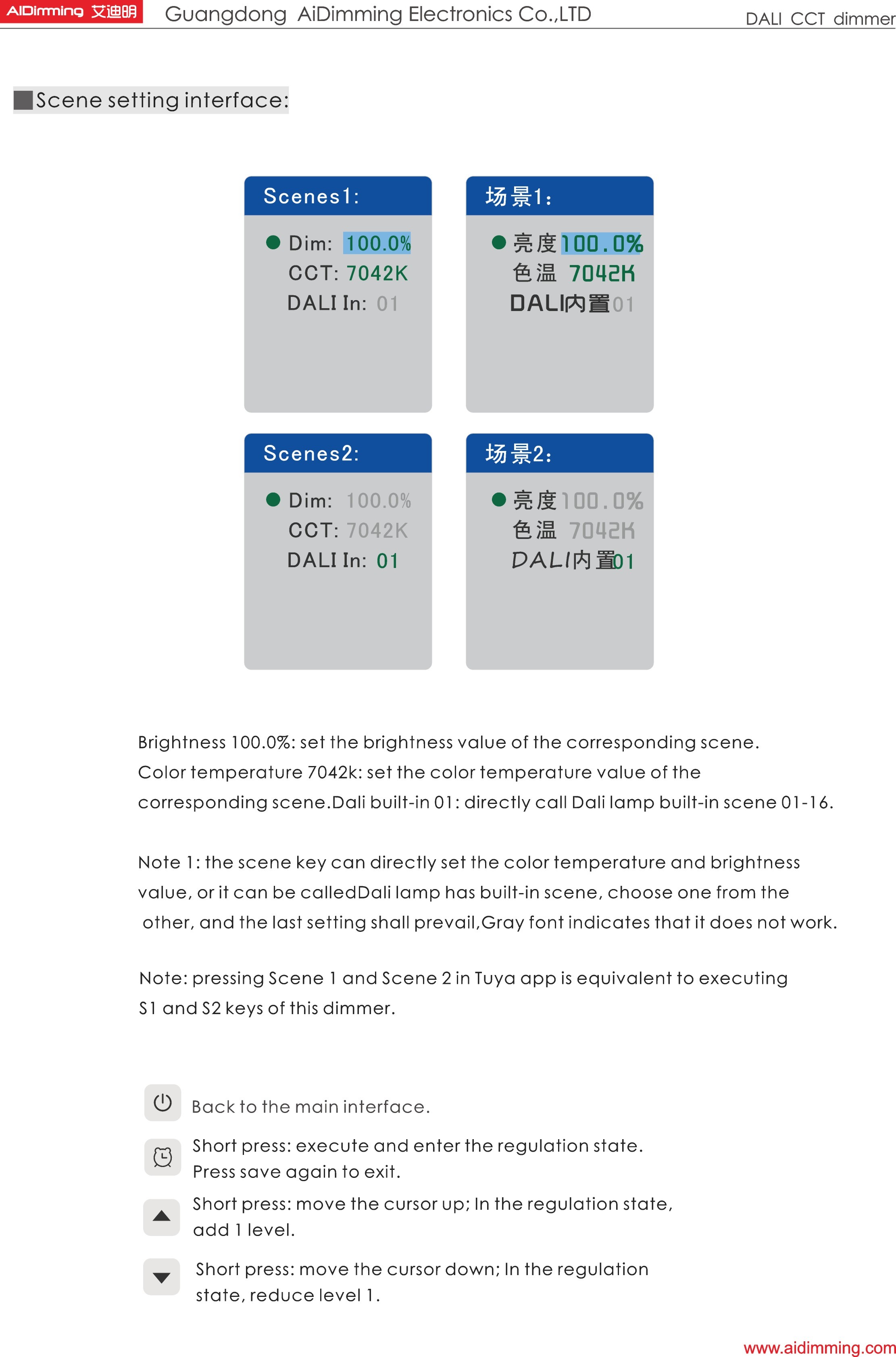

• Custom Scene Settings – Two lighting scenes can be customized.

• Adjustable Color Temperature – Fine-tune CCT within the supported LED range.

• Voice & App Control Support – Compatible with Tuya App and third-party voice control platforms.

• Supports 64 Devices Simultaneously – Ideal for expansive lighting environments.

Technical Specifications

• Model: PE-X1-DALI

• Output Voltage: 16–22V DC

• Max Output Voltage: 22V DC

• Current: 125mA

• Dimming Range: 0–100%

• Input Voltage: 200–250V AC

• Frequency: 50/60Hz

• Touch Keys: 8 physical keys

• Color Temp Setting: Customizable

• Mobile App: Tuya Smart

• Load Capacity: Up to 64 DALI devices

• Delay Off: 30 seconds

• Working Temperature: ta: 45°C, tc: 80°C

• Working Humidity: 20–95%RH, non-condensing

• Withstand Voltage: 3750V AC

• Isolation Resistance: 100MΩ @ 500VDC/25°C/70%RH

• Dimensions: 86 × 86 × 33mm

• Weight: 200g ± 10g

• Packing: Color box

Application

• Smart home automation

• Villa intelligent lighting systems

• Wireless lighting access

• Museum illumination control

• High-end commercial lighting environments
