AiDiming PE-N30DA / PE-N45DA | DALI/0-10V Dimming LED Driver (30W / 45W)

✨ Features:

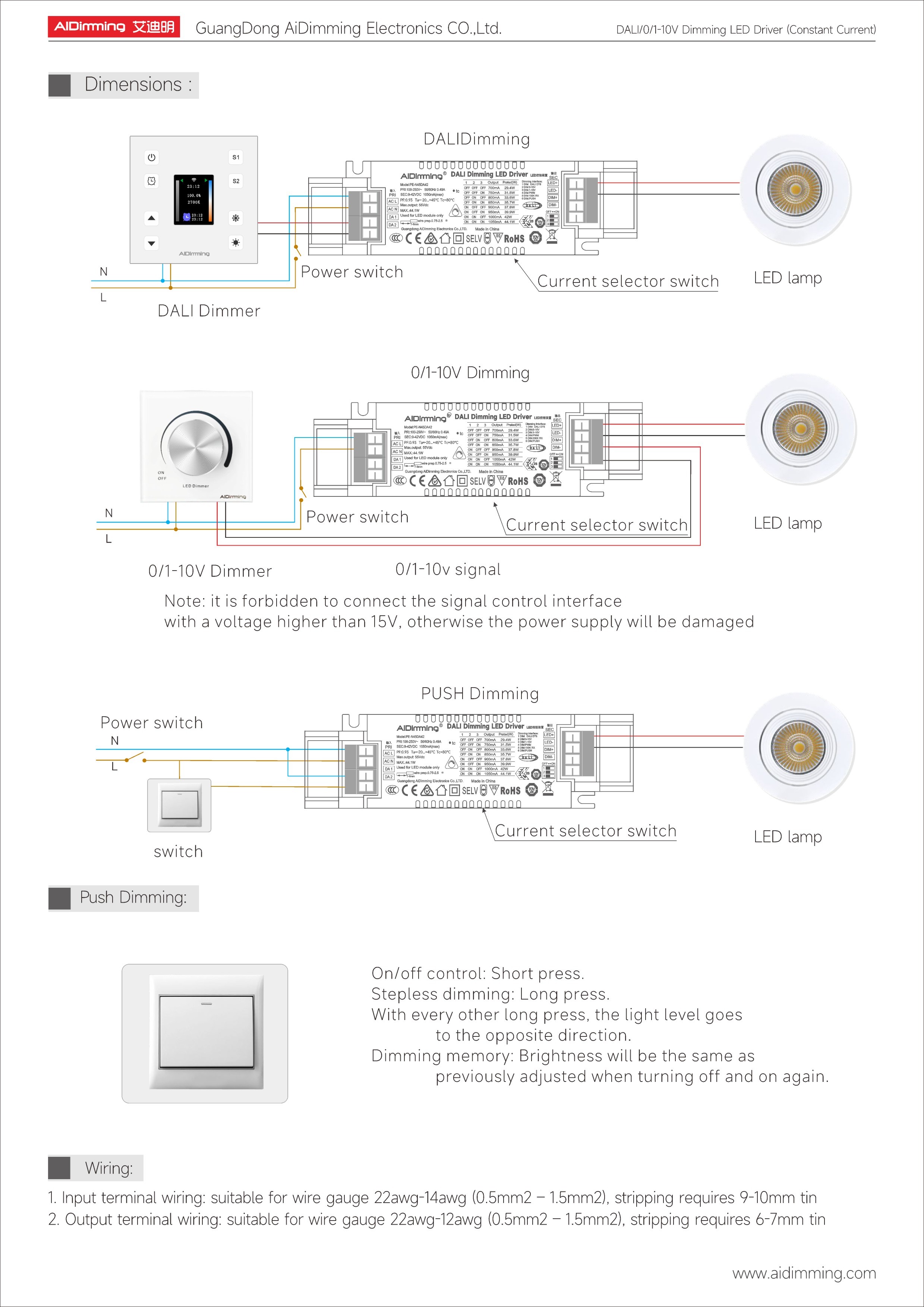

• Integrated multiple signal dimming interfaces (DALI, 0-10V, 1-10V, PWM, PUSH)

• Digital control output, flicker-free

• AC input range: 100-250V

• Natural air cooling, moisture-proof silicone heat conduction

• Deep dimming design with LEDstart at 0.03%

• Multiple protection features: overheat, overload, short circuit

• Convenient crimping design

• 8-gear current selection

⚙️ Specifications:

Models Available:

• PE-N30DA42 (30W)

• PE-N45DA42 (45W)

Output:

• Voltage: 9–42Vdc

• Max Output Voltage: 42Vdc

• Non-load Output Voltage: 53Vdc

• Output Current (mA):

  • PE-N30DA42: 350–700mA

  • PE-N45DA42: 700–1050mA

• Output Power:

  • PE-N30DA42: 3.15W–29.4W

  • PE-N45DA42: 6.3W–44.1W

• Strobe Level: No Flicker

• PWM Dimming Frequency: >3600Hz

• Accuracy: ±5%

• Power down mode: Memory function

Input:

• Voltage: 100–250Vac

• Frequency: 50/60Hz

• Current:

  • PE-N30DA42: <0.35A

  • PE-N45DA42: <0.49A

• PF:

  • PE-N30DA42: PF >0.95

  • PE-N45DA42: PF >0.96

• THD: <10%

• Efficiency:

  • PE-N30DA42: 86%

  • PE-N45DA42: 87%

• Inrush Current: Cold start 30A@230Vac

️ Environmental:

• Working Temp: -20 to 45°C (tc: 80°C)

• Humidity: 20–95% RH (non-condensing)

• Storage: -40 to 80°C, 10–95% RH

• Temp. Coefficient: ±0.03%/°C(0–50°C)

• Vibration: 10–500Hz, ZG 12min/1cycle, 72min per axis

Protection:

• Overheat: Intelligent shutoff at >110°C

• Overload: Auto recovery when >102%

• Short Circuit: Auto recovery

• Non-load: Constant voltage output

Safety & EMC:

• Withstand Voltage: 3750Vac

• Isolation Resistance: 100MΩ/500VDC/25°C/70%RH

• Standards: IEC/EN61347-1, -2-13

• EMC Emission: EN55015, EN61000-3-2 Class C, EN61000-3-3

• EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547

• Strobe Test: IEEE 1789

Other Info:

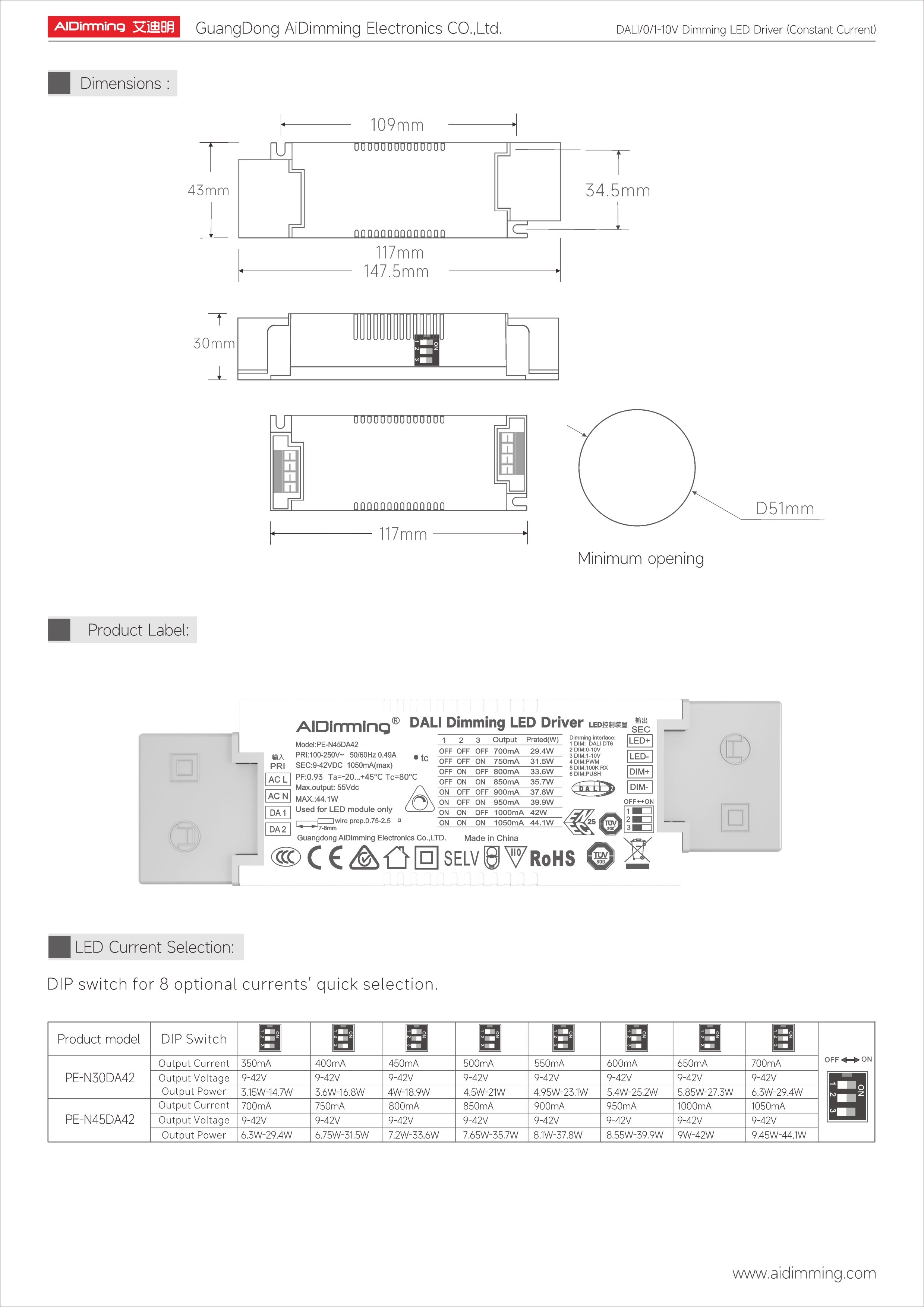

• Dimensions: 147.5(117)×43×30mm (L×W×H)

• Weight: 220g ±10g

• Packing: Box

Applications:

• Monochrome LED lighting

• Villa and high-end intelligent lighting

• Wireless and KNX lighting systems

• Museum and commercial lighting
